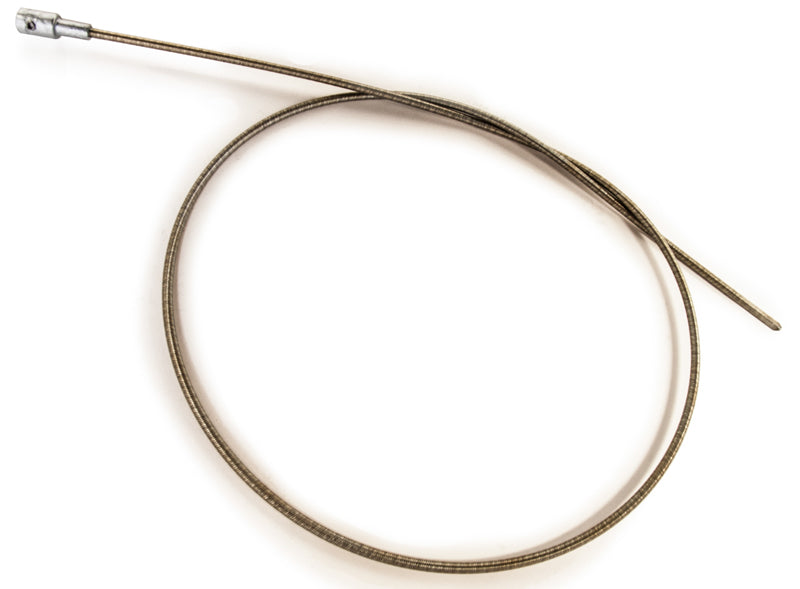

Foredom S-10805 Shaft Complete, H,45 (D-Drive)

Product Description

Foredom - S-10805 There are two different kinds of replacement inner shafts for discontinued Series H Motors. Be careful when ordering. Be sure to expose the entire inner shaft to determine which style you need:

• The 45-3/4″ square drive shaft featured here has asquare drive tip on the handpiece end and a coupling on the other end for attaching to
  the motor. When usedas replacementon a discontinued Series H motor (that uses this style shaft), itshould be partnered with the S-10802A heavy duty sheath (which includesthe SS10822 silencer spring). Depending on your needs, you may want toconsider purchasing the S-10804B, which is a completeshaft/sheath/silencer assembly.
• The S-10805/45 is the other style inner shaft for discontinued Series H motors. It has square drive tips on BOTH ENDS and no coupling. It requires the S-10802A heavy duty outer sheath.

Optional Shorter Length for Series SRH, TXH and LXH Motors:

This square drive shaft, when usedfor replacementon a Series SRH, TXH or LXH motor,should bematched withthe S-10802TX heavy duty sheath. It includes the SS10822 silencer spring and is available separately. Depending on your needs, you may want to consider purchasing the S-10804TX, which is a complete shaft/sheath/silencer assembly.

Square drive shafts can only be used with Foredom’s square drive handpieces. See related products below.

S-10805 Shaft MUST ship via UPS in larger carton to avoid damage (bending) that could occur if shipped in smaller, USPS carton.
