Foredom S.B0-516 Flexade 5/16

Product Description

Foredom - S.B0-516 Use Product Options Menu to Select Coupling Size:

S.B0-516 – 5/16″ Coupling for use on current lathes- built in 2002 and later with 5/16″ motor shafts

S.B0-14 –1/4″ Coupling for use on lathes older than 2002 with 1/4″ motor shafts

S.B0-12 – 1/2″ Coupling

S.B0-38 – 3/8″ Coupling

Current models of BL Lathes refers to models built in 2002 and later.
These lathes have 5/16″ motor shafts. Older models (including Nos. 1 5 High Speed Bench Grinders) have 1/4″ motor shafts and were built before 2002.

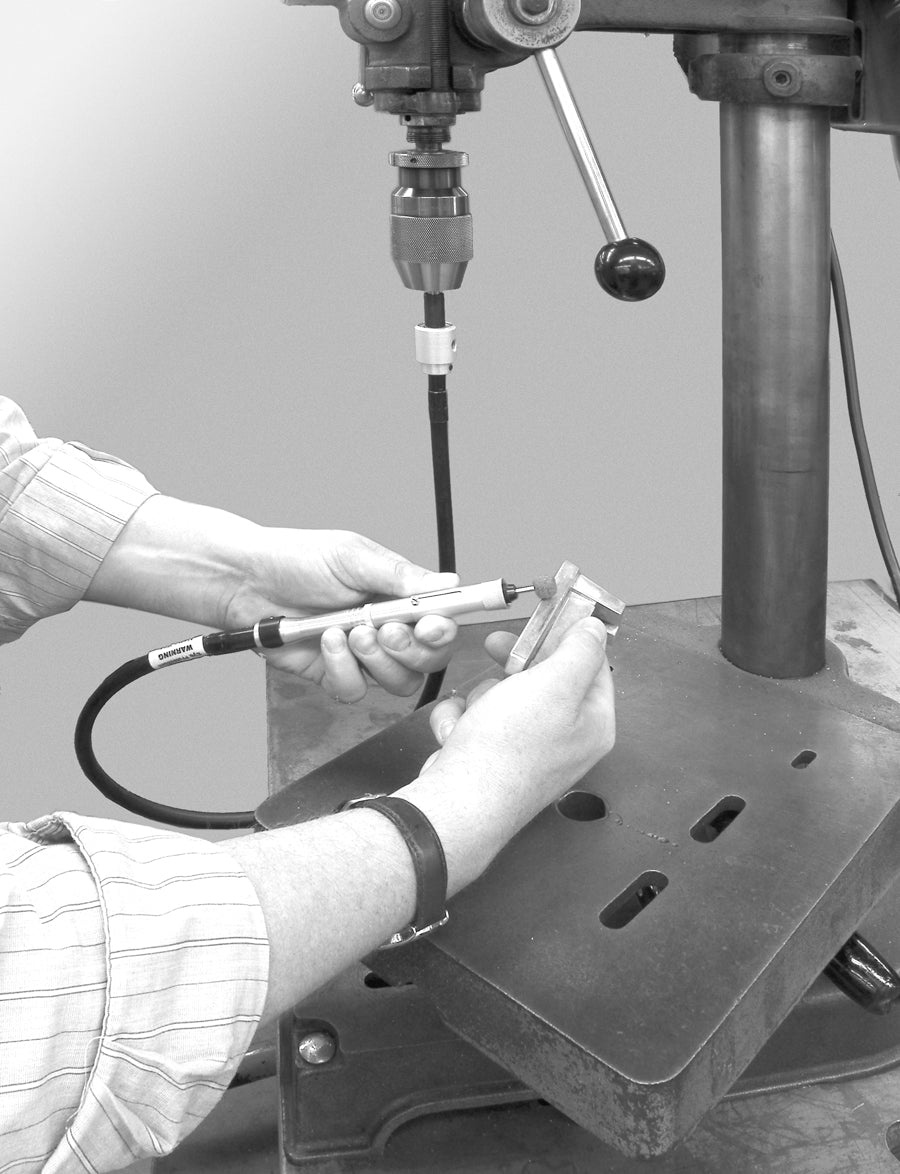

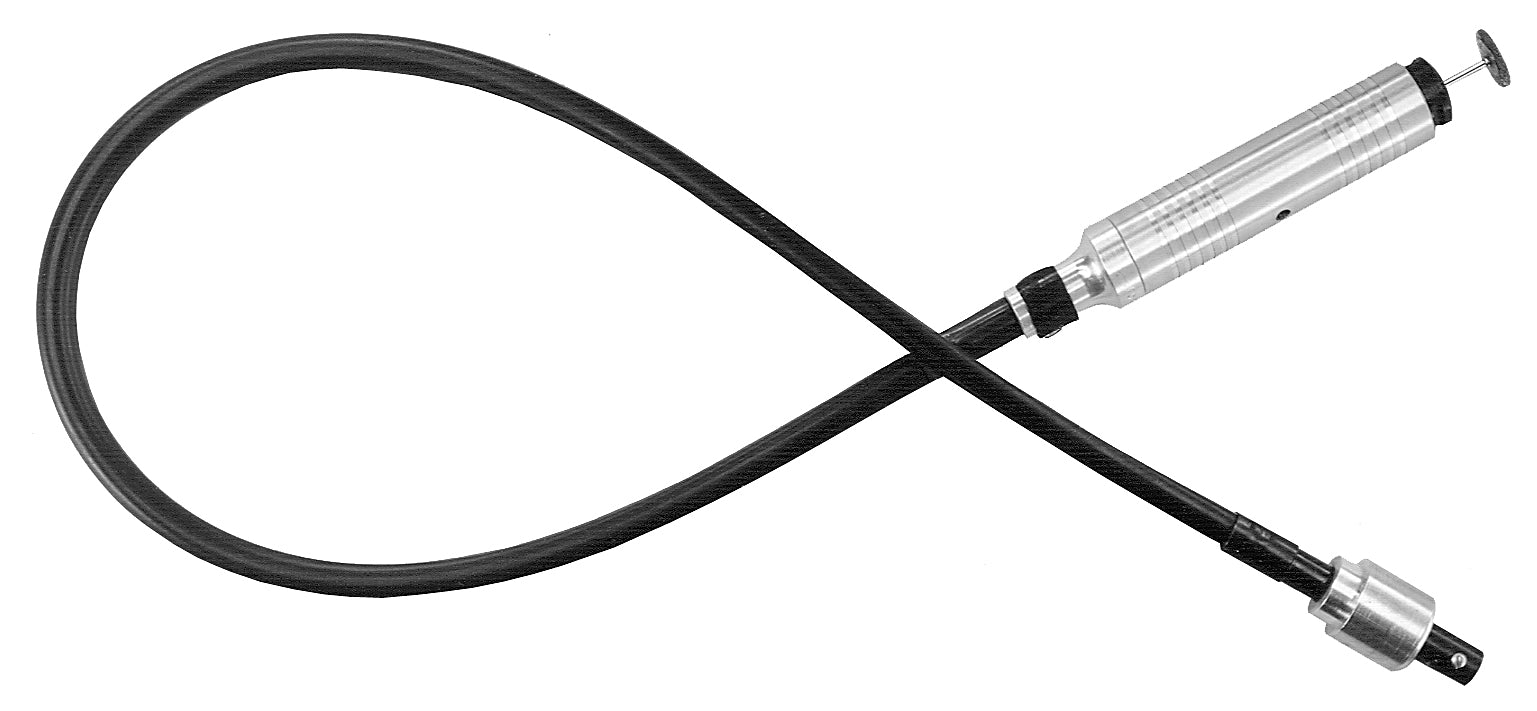

Our 34″ long Flexade converts a bench lathe, drill press or electric drill into a flexible shaft machine. Includes standard outer sheath and inner key tip shaft for attaching any of our standard key tip connecting handpieces.

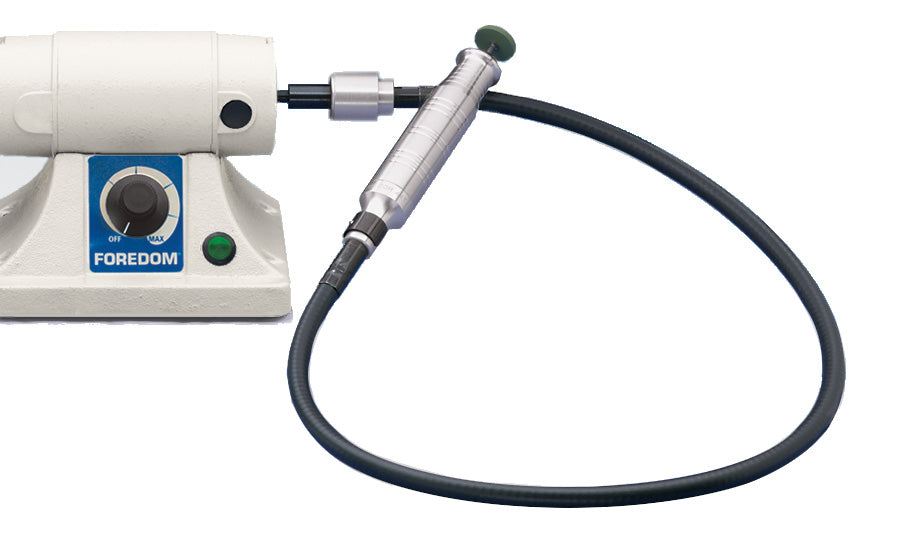

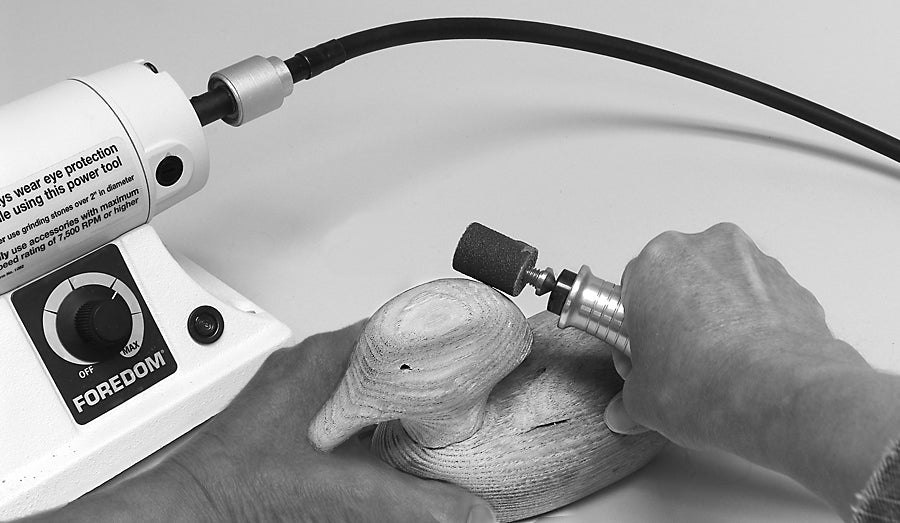

Flexades are ideal for use with the BL Lathe which runs up to 7,000 RPM. Since the Flexade can only run in forward, it must be mounted on the right side of the bench lathe as you face it. For best performance, motor speed should operate at 3,500 RPM pr higher.
