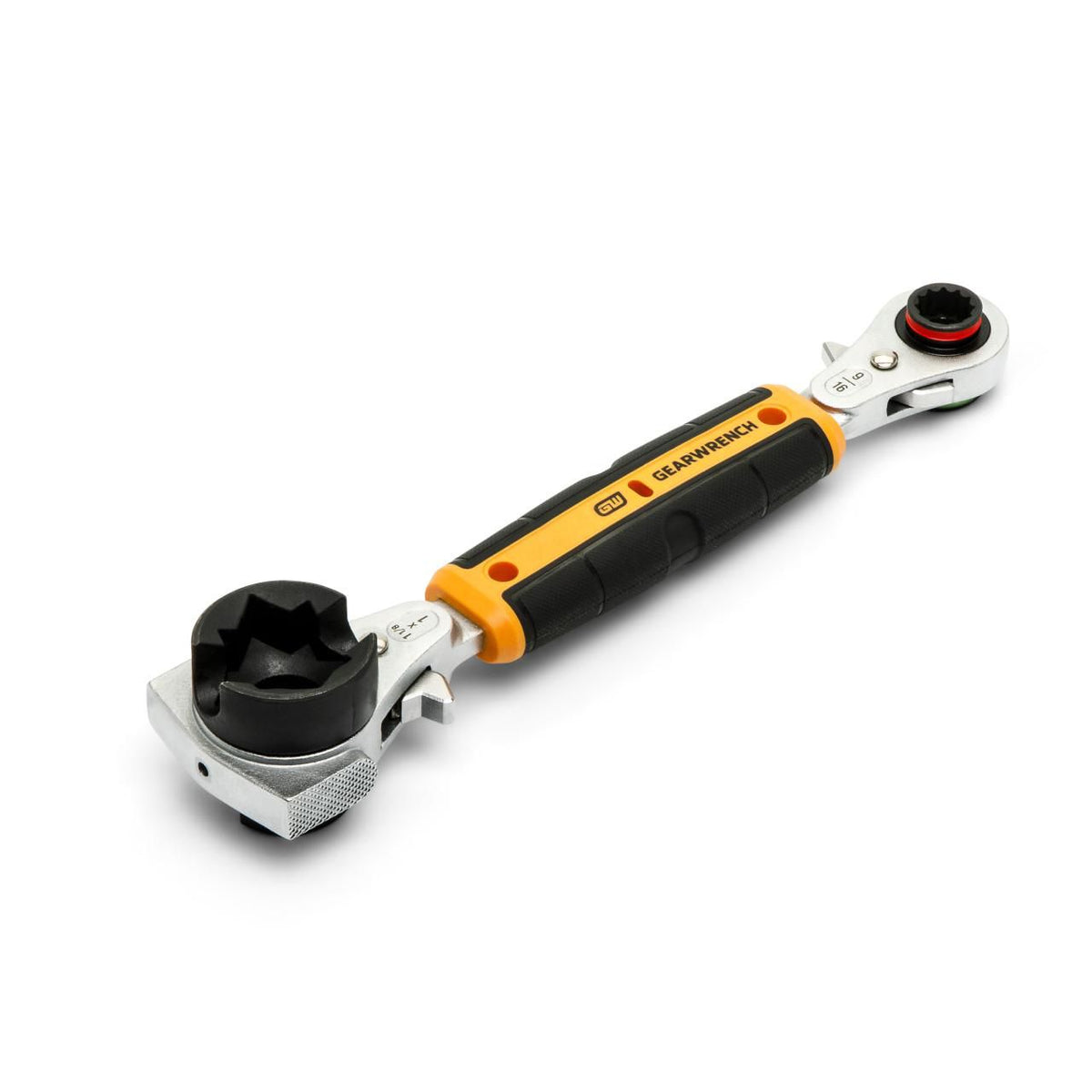

Gearwrench GWULW91 Lineman 9-in-1 Isolated Ratcheting Wrench

Product Description

The GEARWRENCH Lineman 9-in-1 Insulated Ratcheting Wrench combines multiple utility hardware functions into one high-performance tool designed for transmission, distribution, and power line work. The electrically isolated handle is IEC 60900 and ASTM F1505 rated for work around energized environments up to 1000V. High-strength ratchet pawl and gear mechanisms deliver smooth operation with minimized ratcheting drag torque, while XL directional switches allow easy operation when wearing insulated gloves. Integrated nut stops help prevent bolt heads from passing through the socket for improved fastener control. Dual smooth and milled hammer faces provide added versatility for installing and removing stubborn hardware, helping reduce tool changes and improve productivity in the field. Backed by a Full Lifetime Warranty.

• Electrically isolated handle for high voltage safe work is IEC60900 and ASTM F1505 rated up to 1000V
• High strength ratchet pawl and gear mechanisms with minimized ratcheting drag torque
• Integrated nut stop in the socket prevents the bolt head from passing through
• XL switches designed for easy use while wearing gloves
• Dual milled and smooth hammer faces for installing and removing stubborn hardware
• Backed by a full lifetime warranty
• For use with 3/4”, 13/16", 1”, 1-1/8” square fasteners and 9/16”, 3/4” standard hex hardware

• Weight (Catalog) - 2.175 lb
• Warranty - Full Lifetime
• Type - Lineman Ratcheting
• End A Fastener Size - 3/4”, 13/16", 1”, 1-1/8”
• End A Drive Type - Square
• End A Offset Degrees - 0 °
• Lineman Configuration - 9-in-1
• Flexible - No
• Overall Length - 11.51 in
• Size - 3/4”, 13/16", 1”, 1-1/8”, 9/16"
• Overall Width - 2.36 in
• Rated Voltage - 1000V
• SAE/Metric/Torx - SAE
• Overall Height - 1 in
• UPC - 099575388606
• Prop 65 - WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
• Drive Type - 12 Point
• Material - Alloy Steel
• End B Fastener Size - 9/16", 3/4"
• Offset - No
• End B Drive Type - Square
• Length Format - Standard
• Finish - Satin Chrome
• Tooth Count - 36 / 48
• ASME Specification - ASTM F1505; IEC 60900
• Insulated - Yes
• Packaging - Boxed
• Hi-Viz® - No
• End B Offset Degrees - 0 °
• Handle Material - Fiberglass
