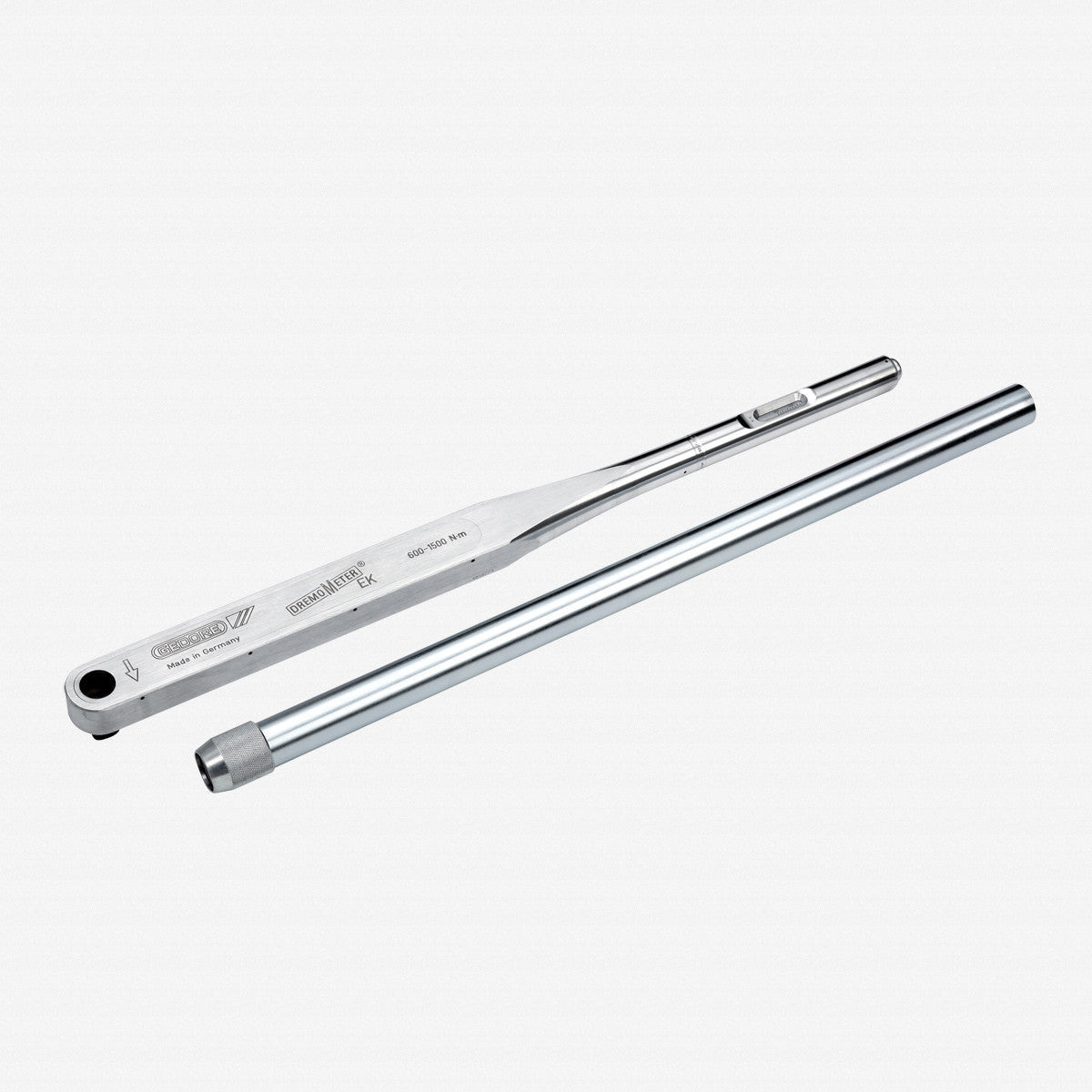

Gedore 2311267 8581-01 Torque wrench DREMOMETER EK 1" 600-1500 Nm

Product Description

Gedore 8581-01 Torque wrench DREMOMETER EK 1" 600-1500 Nm
Use:
Controlled screw tightening in the range 600-1500 Nm
For use in almost all industrial manufacturing areas

Features:
Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque.
1" square drive with pin-locking mechanism DIN 3120 - B25, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Single scale with a scale graduation of 25 Nm

Technical advantage/Function:
Lightweight and robust (as housing is made of an aluminum alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from Gedore's own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Single-square driveFeatures

• Overall length - Over 500mm (20 inches)
• Weight - 23.81 lb
