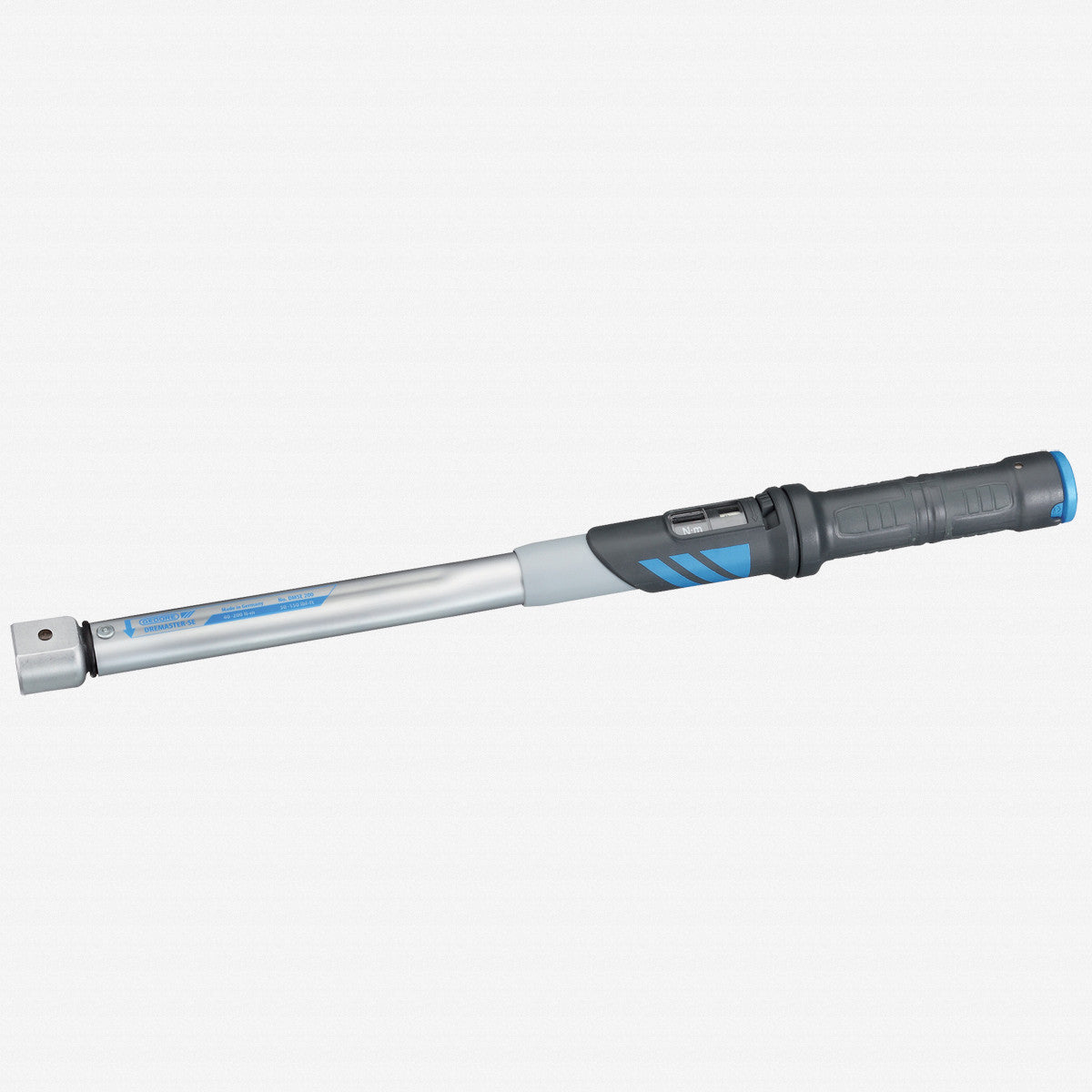

Gedore 2641461 DMSE 200 Torque wrench DREMASTER SE 14x18, 40-200 Nm

Product Description

Gedore DMSE 200 Torque wrench DREMASTER SE 14x18, 40-200 Nm

Controlled screw tightening in the most common range of 20 - 400 Nm / 15 - 300 ft-lbs. (guide for screws M7-10.9 to M20-6.9)
Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades Features:
Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate allowing for operations to be traced back. Calibrated to a permitted +/- 3 % deviation and better. The specifications of the standard (+/- 4 %) are exceeded.
For controlled bi-directional tightening
Sturdy, satin chrome-plated tubular steel construction, with chrome-plated rectangular cavity (9x12 mm or 14x18 mm) and high-grade plastic parts
Ergonomically shaped, 2-component plastic grip with calibration aid
Change-over between Nm main scale and ft-lbs. ancillary scale to avoid reading errors when setting the torque wanted.
With micrometre scale for main Nm scale for setting interim values
Release system triggers a tactile and audible signal
Ergonomic system for torque adjustment with reference symbol
Provision for rapid setting with hexagon allen key, not included
Secured adjusting/setting system
Factory depth gauge: 17.5 mm (9x12) or 25 mm (14x18)
Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
Patent applied

• Handle materialMulti-Component Material
• Overall lengthOver 500mm (20 inches)
• Weight2.43 lb
