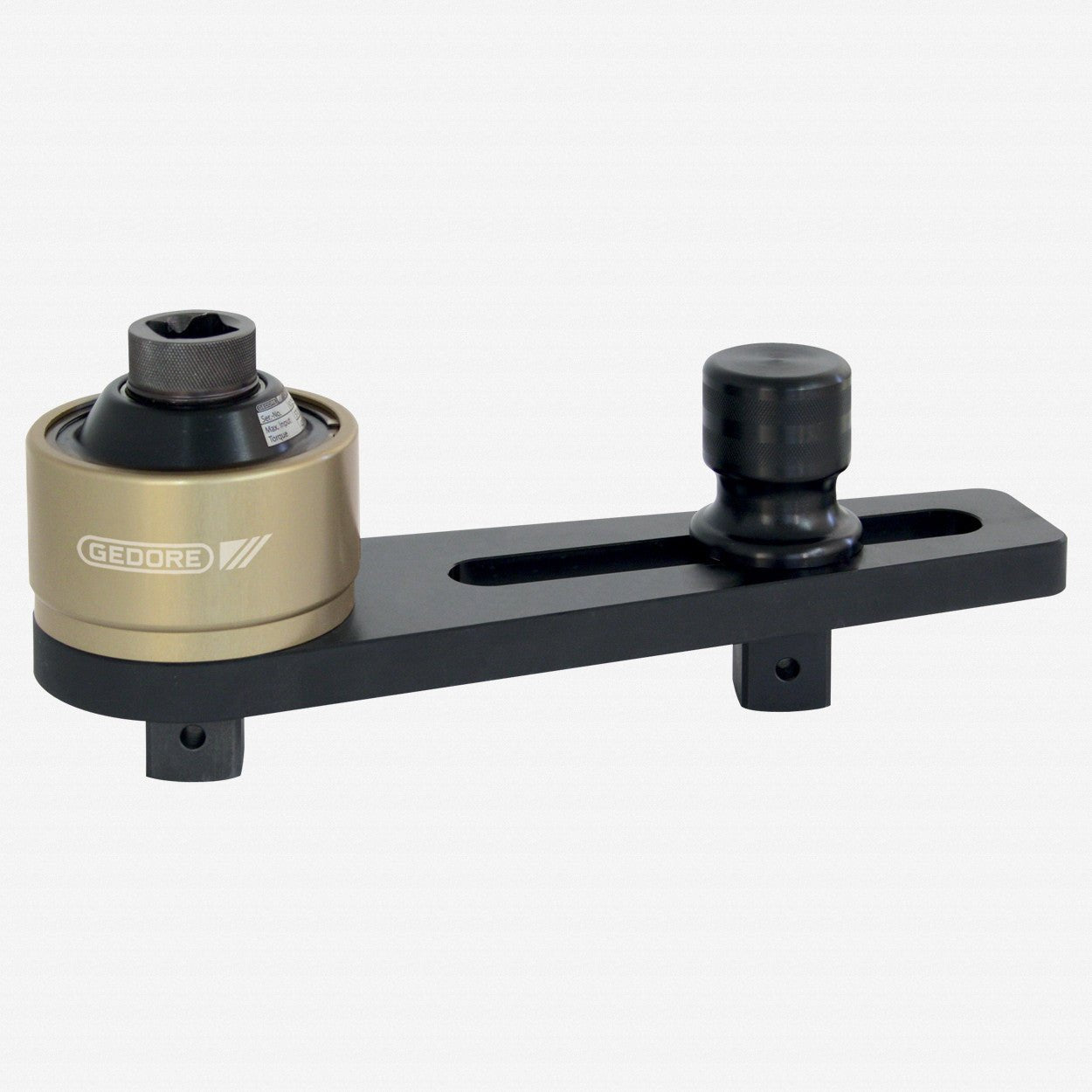

Gedore 2653257 DVI-28L Torque Multiplier DREMOPLUS ALU 2800 Nm

Product Description

Gedore DVI-28L Torque Multiplier DREMOPLUS ALU 2800 Nm

Particularly suitable for:
Industry, construction sites, car and truck garages, agricultural technology, construction machinery
Bridge, aircraft and railway construction, shipbuilding, refineries
Machinery and plant engineering, maintenance Features:
Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
With a single-stage planet gear
High-performance aluminium housing
Multiplication at the ratio of 1:4, 1:5.5
Guaranteed accuracy: Better than +/- 3 % tolerance
For operation in combination with a torque wrench
2 models for maximum load in the range between max. 2000 Nm and 2800 Nm
Z model: with Z-form, offset reaction arm of chrome-vanadium steel
L model: with L-form straight reaction arm - with adjustable reaction square - of lightweight metal
Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:
Torque Multiplier DREMOPLUS ALU
With firmly integrated reaction arm of an L- or Z-form depending on model
Delivery in sturdy shipping case with foam insert
Factory test certificate and setting table
Detailed technical information is available on requestFeatures

• Overall length - 250-299mm (10.0-11.9 inches)
• Weight - 7.5 lb
