category:
Digital Tools
country_of_origin:
TW
custom_label_2:
in-stock
custom_label_3:
In-stock
manufacturer:
General Tools
mpn:
DM8200
subcategory:
ENVIRONMENTAL AND AIRFLOW
type:
Pressure Meters
Product Description

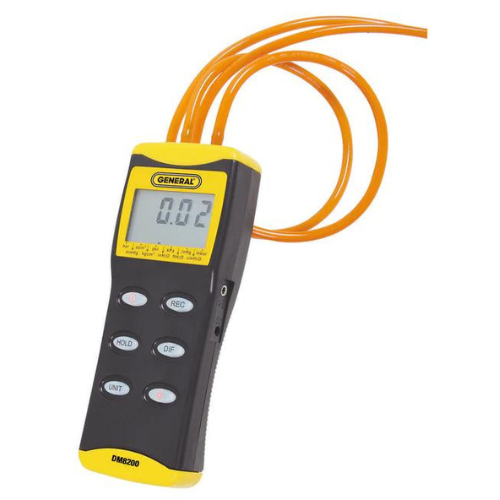

General Tools - DM8200 The #DM8200 is optimized for applications in which gauge or differential pressure ranges from 0 to 100 psi. Its resolution of 0.1 psi is sufficient for measuring manifold pressure with 0.3% accuracy.
- Display unit options: psi, in.H2O, bar, mmHg,oz.in2, kgcm2, kPa, ft.H2O, in.Hg, cmH2O, mbar
- Min/Max memory + data hold
- Large backlit dual-readout LCD that displays the measured pressure above a relative time clock (which enables resetting of the measurement timeline)
- One-button relative zero setting
- Includes two connection hoses
- Optional #ASFTKIT PC data logging software/hardware is available
- Auto power off (can be disabled for datalogging)
Additional Information
ManufacturerGeneral Tools
IncludesTwo connection hoses Custom hard plastic carrying case Battery 1-year limited warranty
Dimensions7.2 x 2.8 x 1.2 in. (182 x 72 x 30mm)
Measurement range/resolution0 to 100 psi/0.1 psi
Measurement accuracy0.3% of full-scale value
Auto power offAfter 20 minutes of inactivity
Power source"9V" battery (included) or optional #Z110VADPT 9V AC adaptor
Operating temperature32° to 122°F (0° to 50°C) @ 80% RH
Response time0.5 seconds
Dimensions of connection hoses39 in. (1m) long, with 0.16 in. (4mm) I.D. and 0.24 in. (6mm) O.D.
Combined Accuracy1% of full scale
