category:
Electric Motors
country_of_origin:
USA
height:
7.10
length:
10.66
manufacturer:
Century
mpn:
6203X
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12.00
width:
6.70
Product Description

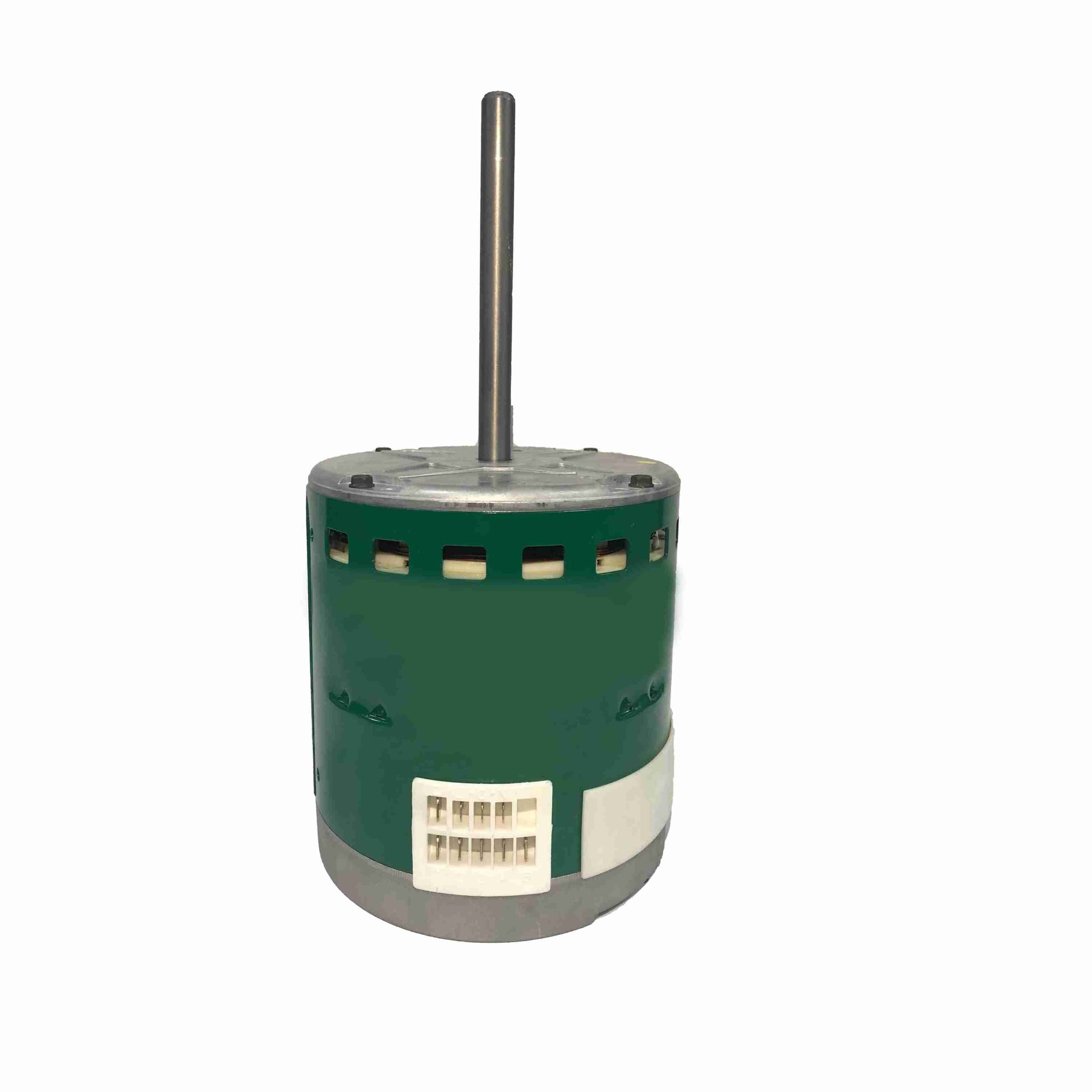

Genteq - 6203X EVERGREEN® EM Fan and Blower Motor, 1/3 HP, 1 Ph, 60/50 Hz, 115/208-230 V, 1050 RPM, 1 Speed, 48 Frame, OPAO - 6203X
Features
- Evergreen EM - Dual Voltage Constant Torque ECM Replacement Blower Motor
- Pre-Programmed at the factor * Ready to use out of the box * Increase first time completion * Rotation sensing technology
- 5.6" Diameter - 48 Frame, Electronically Commutated (ECM), Electronically Protected
- Up to five constant torque settings controlled by 24 VAC inputs
- Fully variable (PWM compatible) from 600-1100 RPM
- Open Air Over, Class B Insulation, 55°C Ambient
- Ball Bearing
- Shaft: Single, 1/2” diameter, 5” length, 4.5” single flat
- 42" Leads
- Belly Band Mount (Belly Band Not Included)
Additional Information
Phase1
Output KW0.25 kW
Speed1050 rpm
Frame48
Thermal ProtectionAutomatic
Frequency60/50 Hz
DutyContinuous Air Over
ULNo
CEN
Number of Speeds1
Output HP1/3 Hp
Voltage115/208-230 V
Service Factor1
EnclosureOpen Air Over
Ambient Temperature40 °C
Current4.1/2.8 A
Insulation ClassB
CSAN
A2L StatusA2L Certified
Electrical TypeElectronically Commutated Motor
RotationCounterclockwise/Clockwise
Motor OrientationHor
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length4.57 in
Shaft Extension4.92 in
Poles10
MountingRound
Drive End BearingBall
Frame MaterialRolled Steel
Overall Length10.66 in
Shaft Diameter0.500 in
UPC818508028125
Packaged Length15.70 IN
Packaged Height7.10 IN
Weight12.00 LB
Packaged Width6.70 IN
Country of OriginUnited States of America
