category:
Electric Motors
height:
6.5
length:
14.12
manufacturer:
Century
mpn:
2927
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10.2
width:
6.38

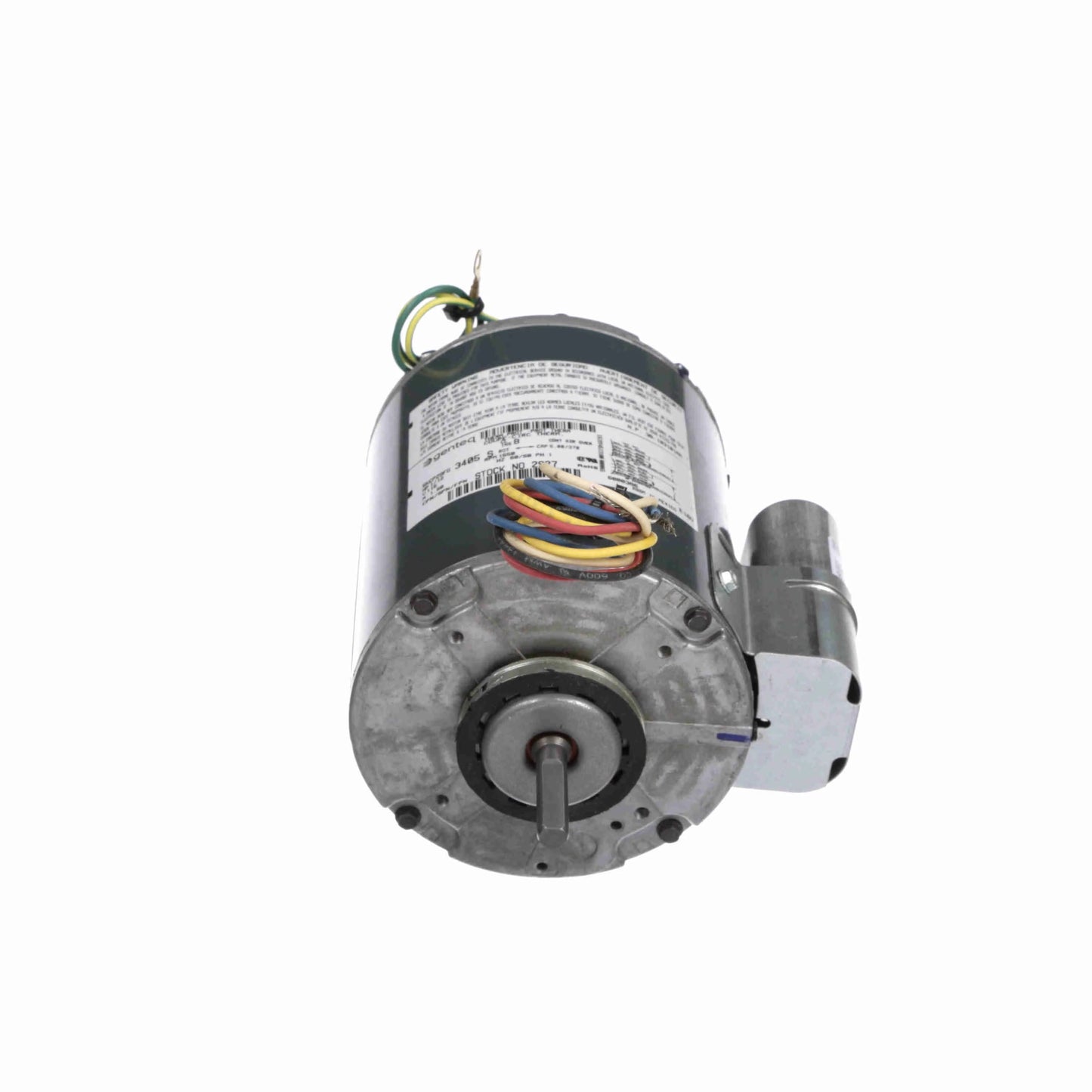

Product Overview
- Commercial Condensing Unit - Space Heater - Unit Heaters and Cooler Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 12" Leads
- Exended Clampbolts Opposite Shaft End, Resilient Ring
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.60 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.20 LB
Country Of originMexico
Output HP1/12 Hp
Service Factor1
Frame42
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.16 in
Shaft Diameter0.370 in
Shaft Extension1.50 in
CEN
