category:
Electric Motors
height:
6.02
length:
15
manufacturer:
Century
mpn:
3746
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
20.2
width:
6.04

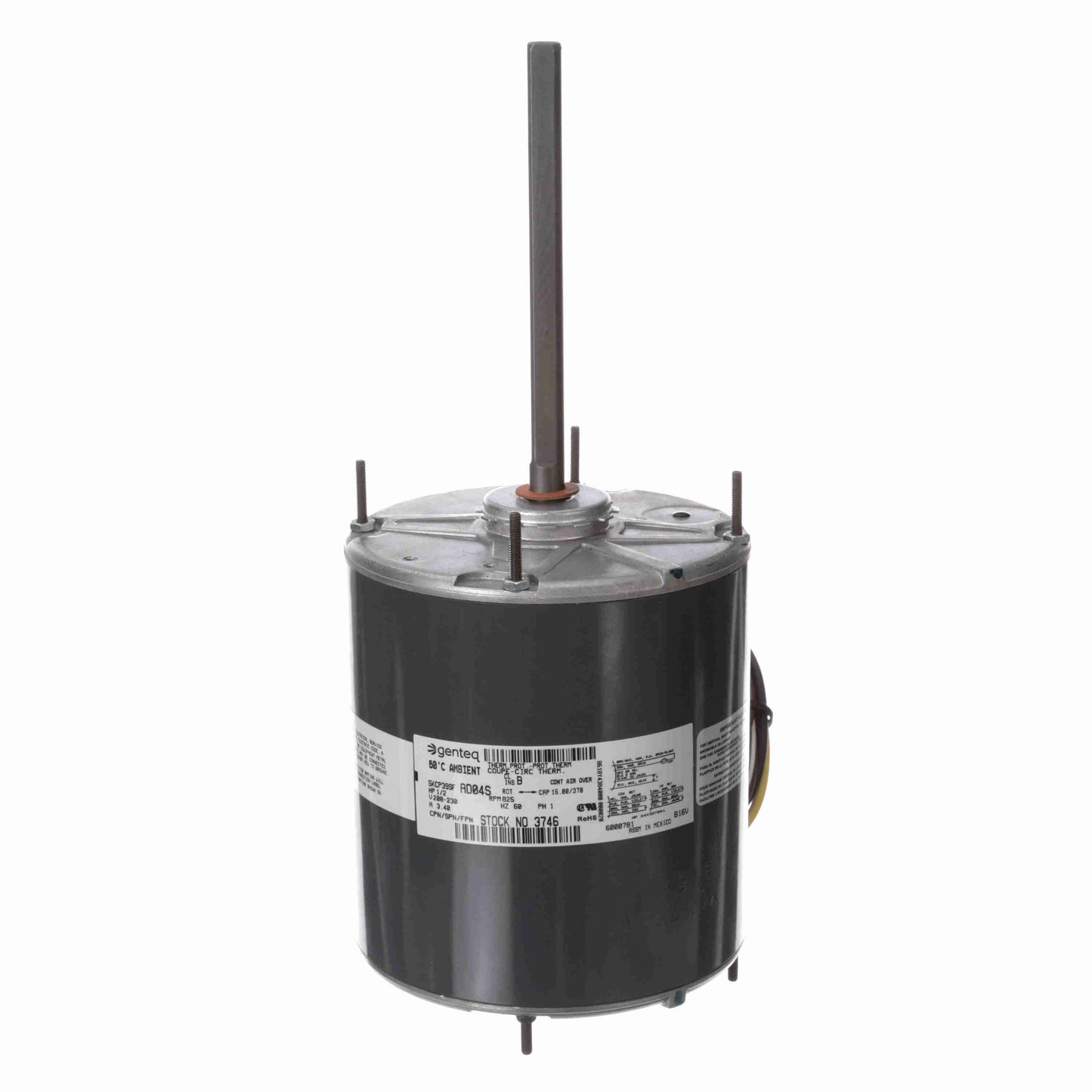

Product Overview
- Condenser Fan - Heat Pump Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Serrated Endcaps for Resilient Rings, Extended Clampbolts, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed825 rpm
Current3.40 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight20.20 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingRound
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.57 in
Shaft Diameter0.500 in
Shaft Extension6.00 in
