category:
Electric Motors
height:
6.02
length:
14.06
manufacturer:
Century
mpn:
3229
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14.8
width:
6.04

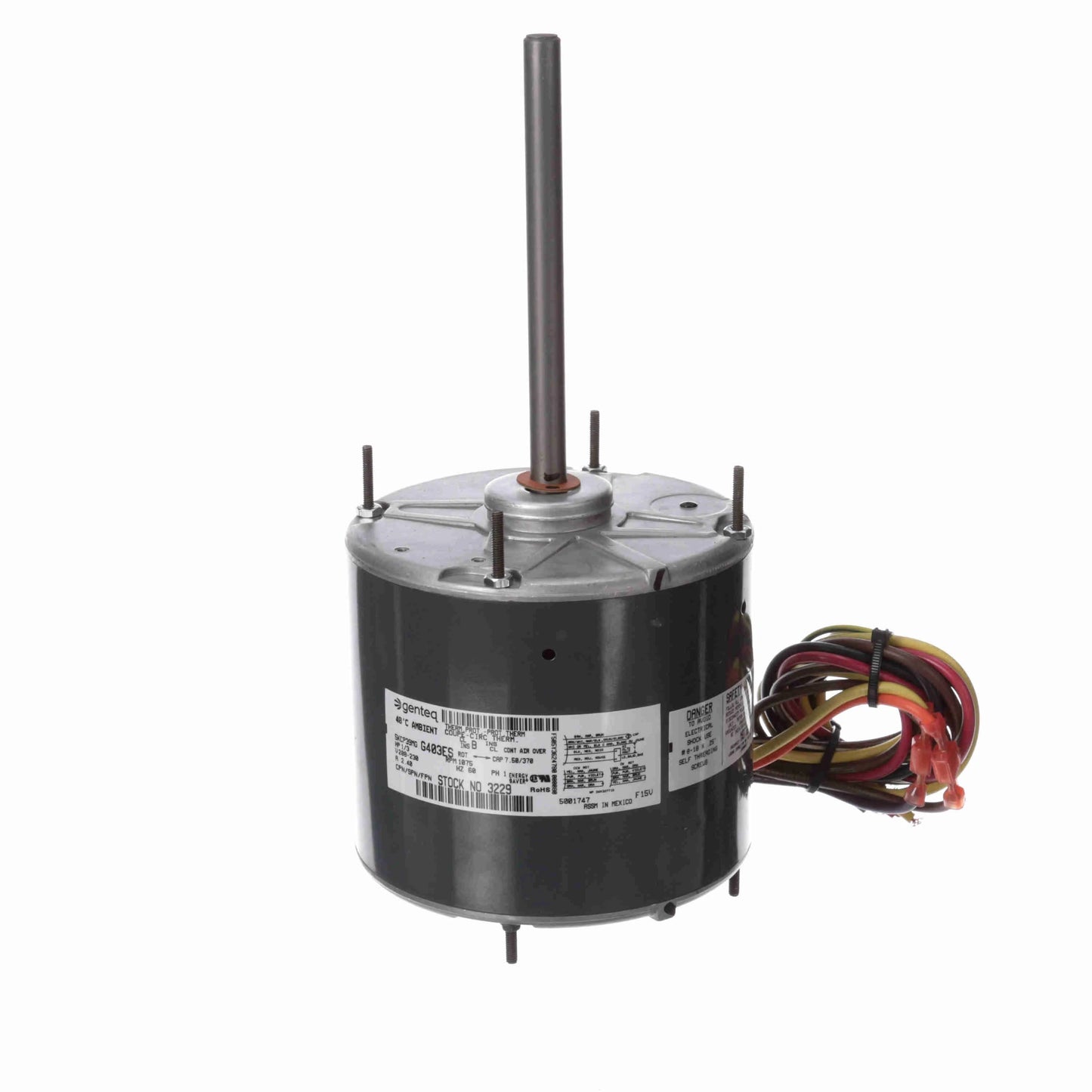

Product Overview
- Condenser Fan - Heat Pump Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current2.40 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight14.80 LB
Country Of originMexico
Output HP1/3 Hp
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationVertical Shaft Down
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.32 in
Shaft Diameter0.500 in
Shaft Extension6.00 in
