category:
Electric Motors
height:
6.02
length:
13.24
manufacturer:
Century
mpn:
G2244
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
6.04

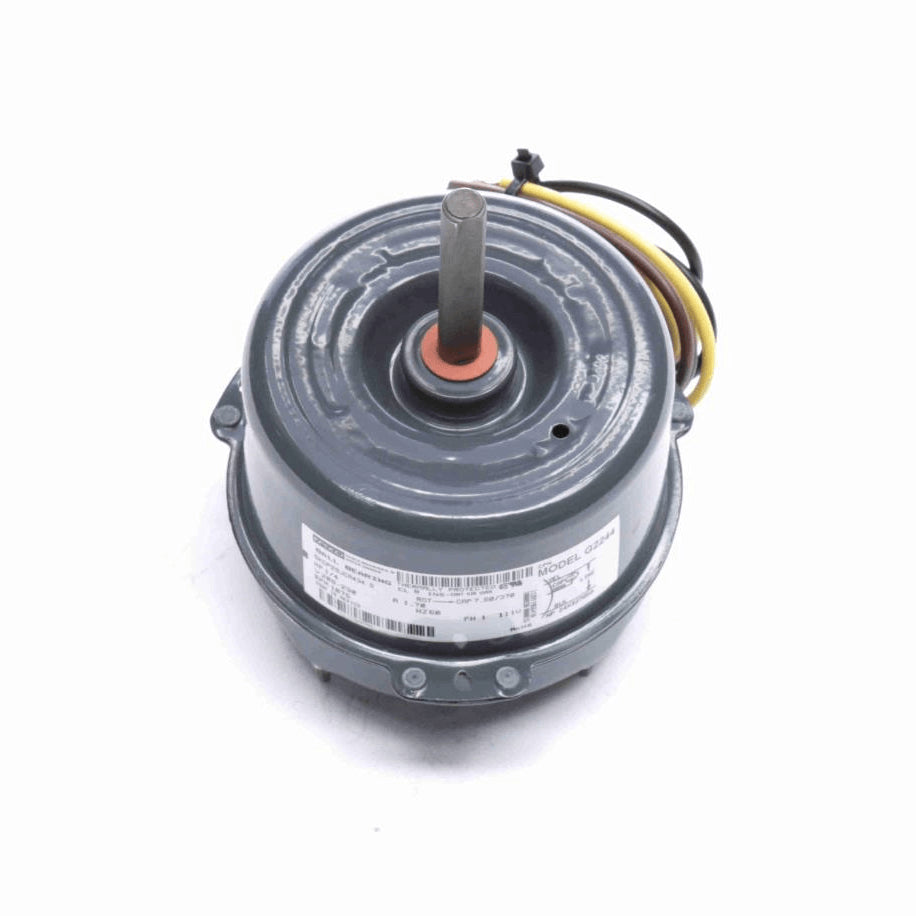

Product Overview
- Cap-Can - Condenser Fan - Heat Pump Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Shaft Down, Extended Clampbolts Opposite Pulley End, Flange
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current1.70 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/4 Hp
Service Factor1
Frame42
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise
MountingExtended Studs
Motor OrientationVertical Shaft Down
Drive End BearingBall
Opp Drive End BearingBall
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension2.75 in
