category:
Electric Motors
height:
5.5
length:
10.12
manufacturer:
Century
mpn:
2249
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8.4
width:
5.5
Product Overview

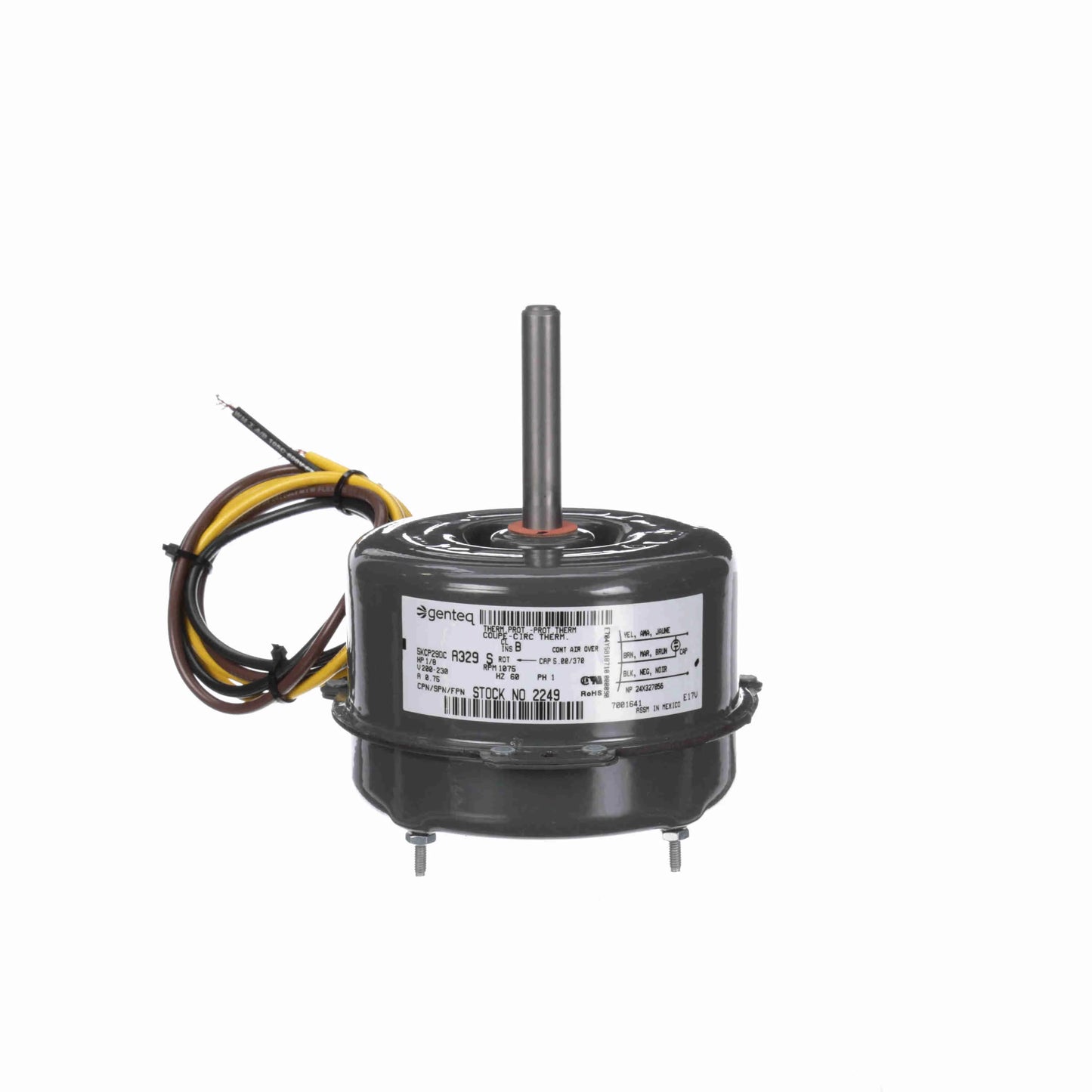

- Condenser Fan - Heat Pump Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Opposite Shaft End, Flange Mount
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current0.75 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.40 LB
Country Of originMexico
Output HP1/8 Hp
Service Factor1
Frame42
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingExtended Studs
Motor OrientationVertical Shaft Down
Drive End BearingBall
Opp Drive End BearingBall
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension2.75 in
