category:
Electric Motors
height:
6.02
length:
15
manufacturer:
Century
mpn:
3331
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
17.2
width:
6.04

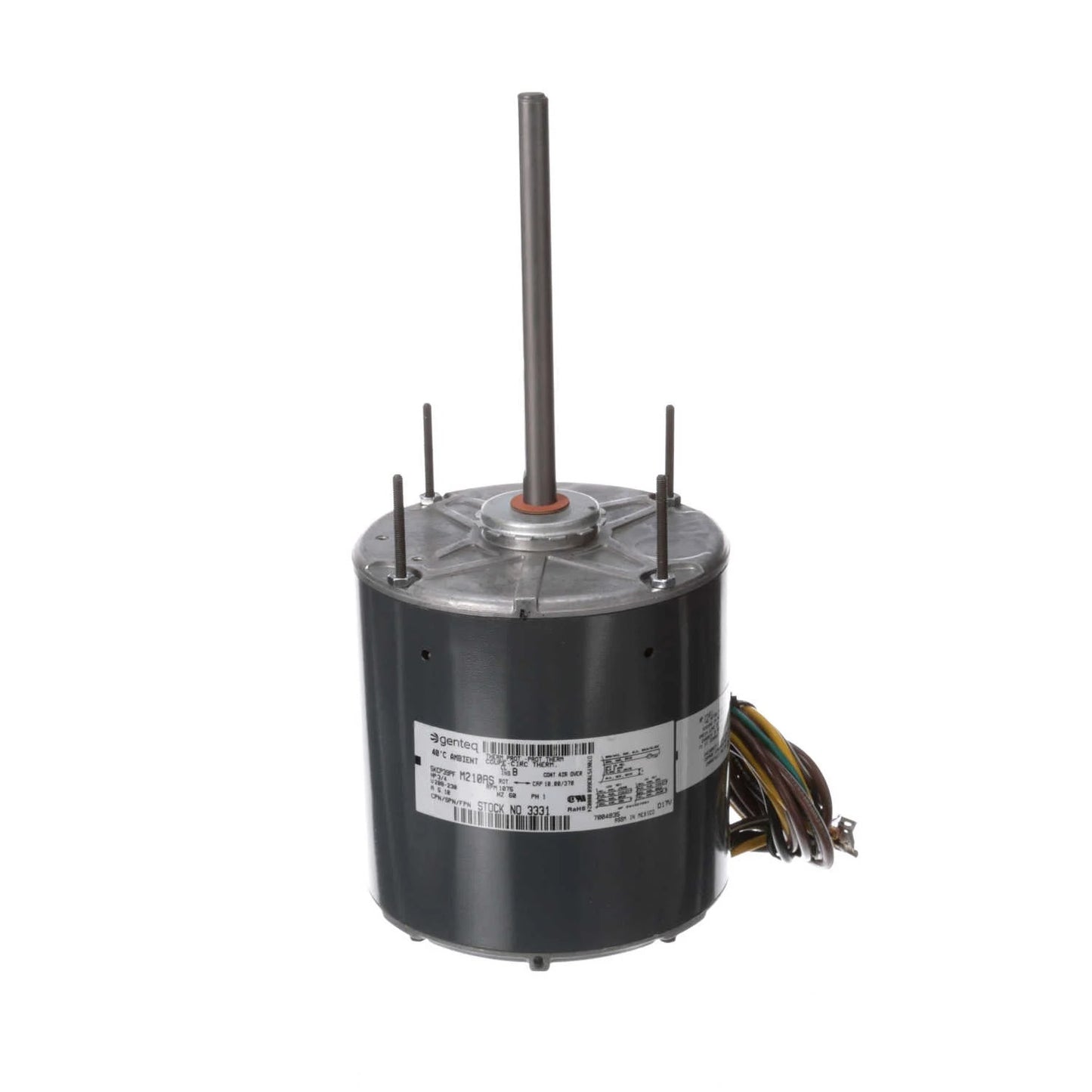

Product Overview
- Condenser Fan - Heat Pump Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Shaft Up/Horizontal, Extended Pulley End Clampbolts, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current5.10 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight17.20 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRound
Motor OrientationVertical Shaft Up
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.07 in
Shaft Diameter0.500 in
Shaft Extension6.00 in
