category:
Electric Motors
height:
6.02
length:
15.49
manufacturer:
Century
mpn:
3C004
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
20.9
width:
6.04
Product Overview

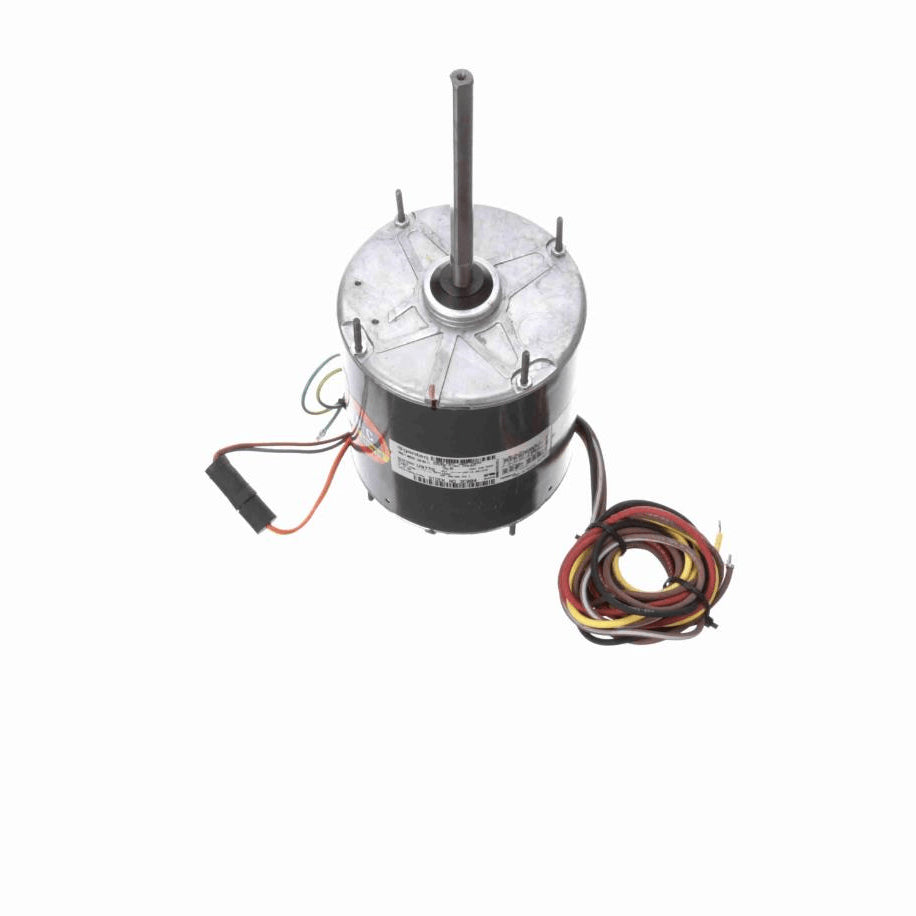

- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Shaft Up, Extended Clampbolts, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1625 rpm
Current3.30 A
Number of Speeds2
Ambient Temperature70 °C
ULRecognized
Insulation ClassB
CSAY
Weight20.90 LB
Country Of originMexico
Output HP3/4 Hp
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingRound Belly Band
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.57 in
Shaft Diameter0.500 in
Shaft Extension6.50 in
CEN
