category:
Electric Motors
height:
8
length:
16
manufacturer:
Century
mpn:
6407
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13.22
width:
8
Product Overview

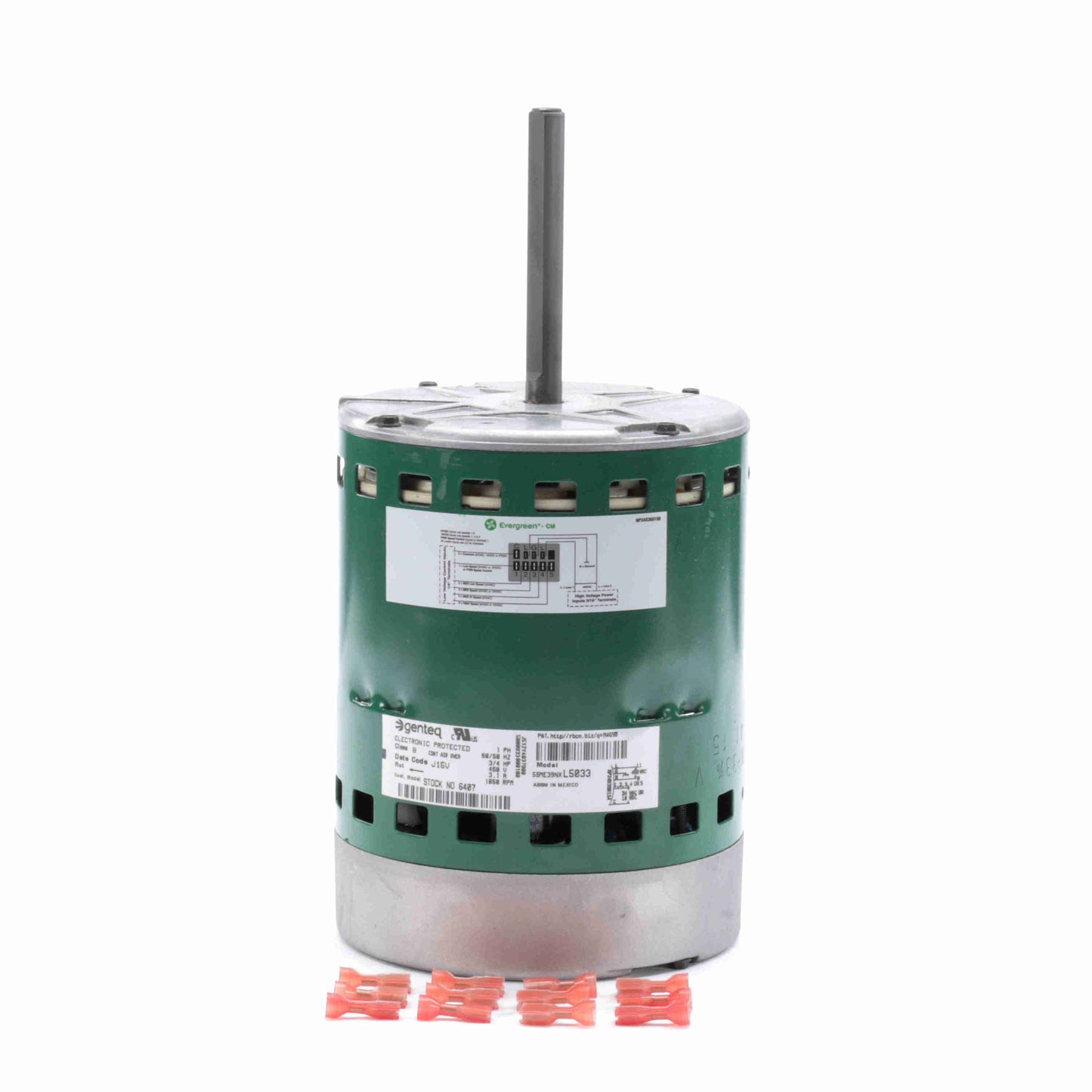

- Evergreen CM - ECM Replacment Commercial Air Handler Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM), Electronically Protected
- Up to five constant torque settings controlled by 24 VAC inputs
- Fully variable (PWM compatible) from 600-1100 RPM
- Open Air Over, Class B Insulation, 55°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionNo Protection
Speed1075 rpm
Current3.1 A
Number of Speeds5
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight13.22 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationReversible
MountingRound
Motor OrientationVertical Shaft Down
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.57 in
Shaft Diameter0.500 in
Shaft Extension3.92 in
CEN
