category:
Electric Motors
height:
7.25
length:
22
manufacturer:
Century
mpn:
6007DS
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
22
width:
7.7
Product Overview

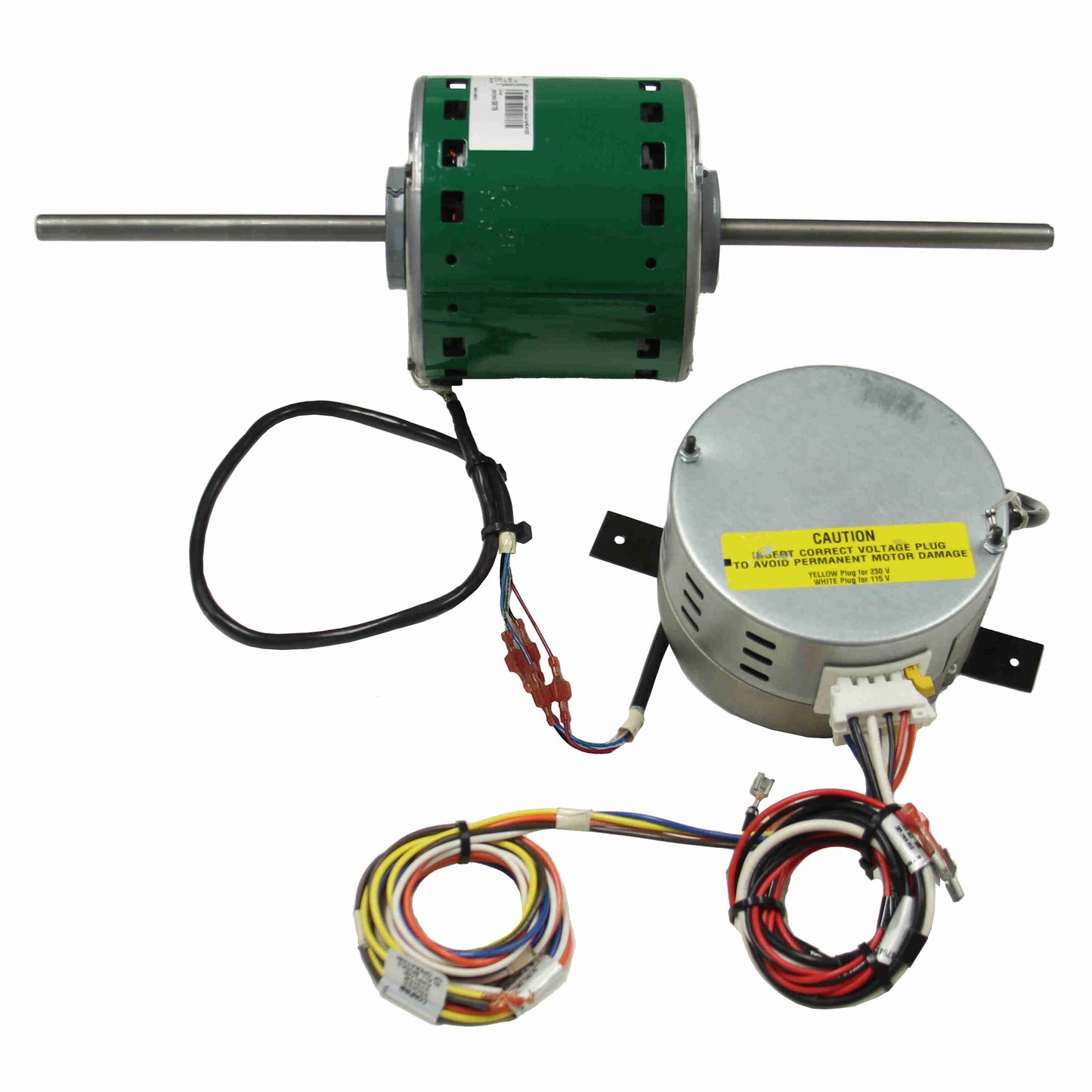

- Evergreen DS - Remote Mount Control - Retrofit Fan Coil, Air Conditioner Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, -20°C to 55°C ambient on 1/3HP and 1/2HP (non-icing conditions), -20°C to 45°C ambient on 3/4 HP (non-icing conditions)
- Ball Bearing
- 1/2" Diameter Shaft with Single Flat
- 44" Leads
- Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionNo Protection
Speed1070 rpm
Current11.0/6.7 A
Number of Speeds5
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight22.00 LB
Country Of originMexico
Output HP3/4 MAX Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationCounterclockwise/Clockwise
MountingResilient Rings
Motor OrientationHor
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.57 in
Shaft Diameter0.500 in
Shaft Extension6.75 in
CEN
