category:
Electric Motors
height:
8
length:
16
manufacturer:
Century
mpn:
6205E
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13
width:
8
Product Overview

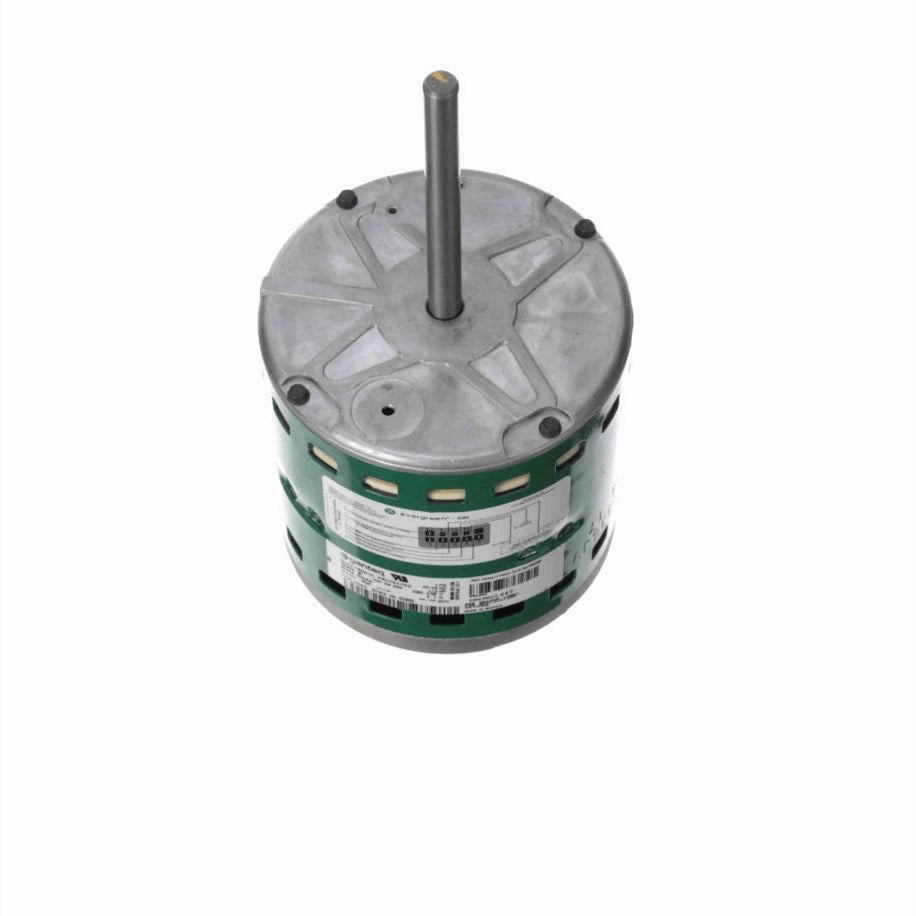

- Evergreen EM - ECM Replacement Blower Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, 55°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads
- Belly Band
Additional Information
Thermal ProtectionNo Protection
Speed1075 rpm
Current4.1 A
Number of Speeds5
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight13.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationReversible
MountingRound
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.82 in
Shaft Diameter0.500 in
Shaft Extension4.92 in
CEN
