category:
Electric Motors
height:
7.1
length:
15.6
manufacturer:
Century
mpn:
6203E
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11.5
width:
6.7
Product Overview

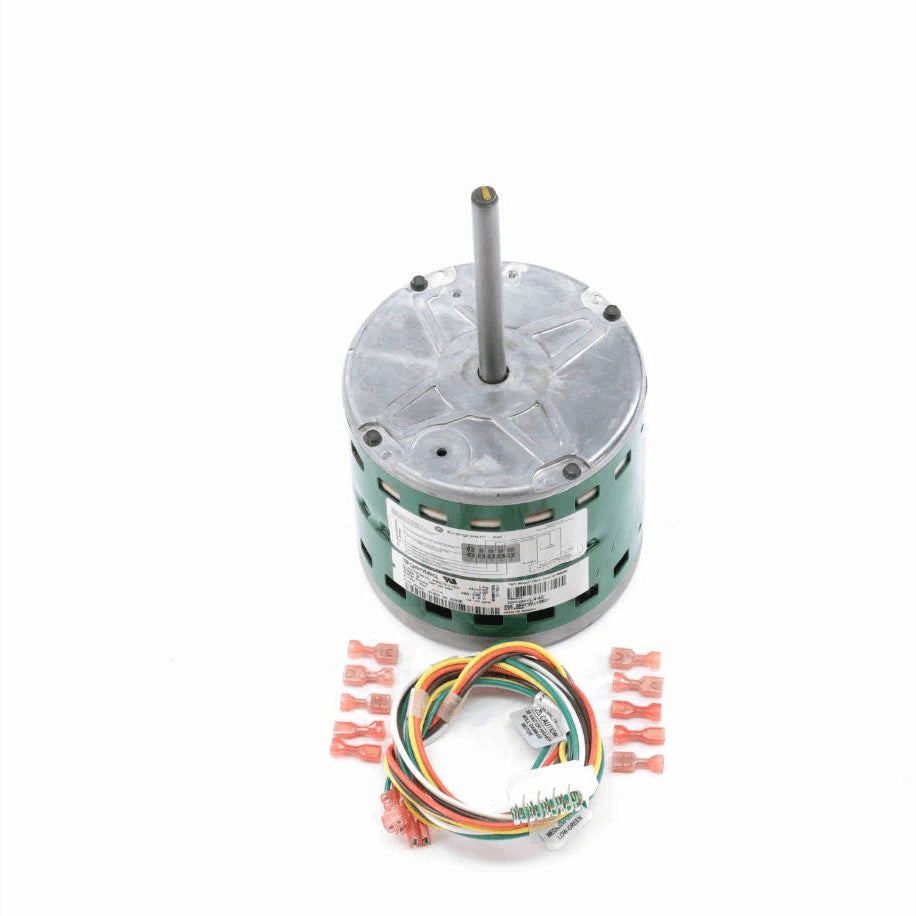

- Evergreen EM - ECM Replacement Blower Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM), Electronically Protected
- Up to five constant torque settings controlled by 24 VAC inputs
- Fully variable (PWM compatible) from 600-1100 RPM
- Open Air Over, Class B Insulation, 55°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionNo Protection
Speed1075 rpm
Current2.8 A
Number of Speeds5
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight11.50 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationCounterclockwise/Clockwise
MountingRound
Motor OrientationHor
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.32 in
Shaft Diameter0.500 in
Shaft Extension4.92 in
CEN
