category:
Electric Motors
height:
8
length:
16
manufacturer:
Century
mpn:
6005
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
8
Product Overview

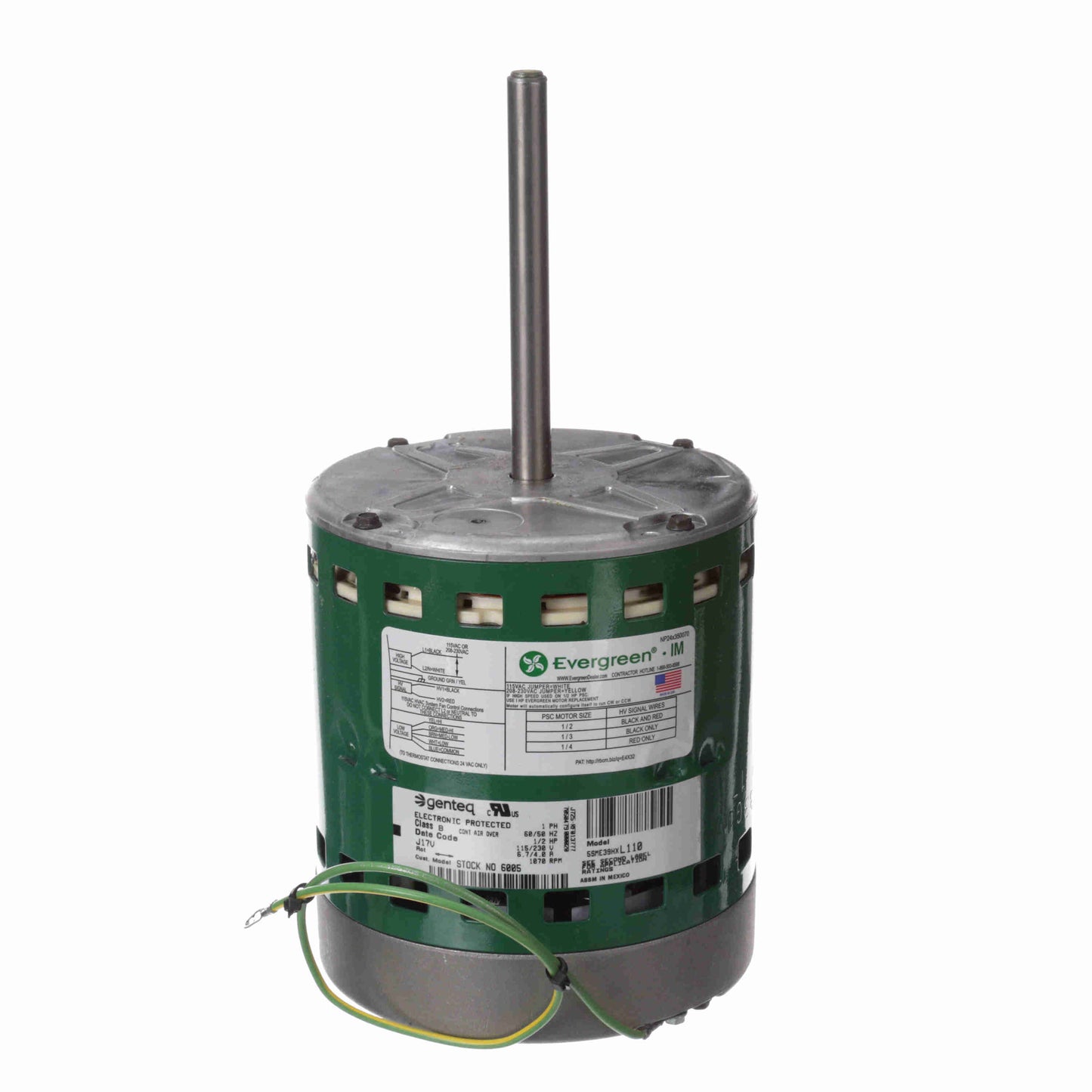

- Evergreen IM - Retrofit Blower Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionNo Protection
Speed1075 rpm
Current6.7/4.0 A
Number of Speeds5
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight14.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationCounterclockwise/Clockwise
MountingRound
Motor OrientationHor
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.82 in
Shaft Diameter0.500 in
Shaft Extension4.92 in
CEN
