category:
Electric Motors
height:
8
length:
16
manufacturer:
Century
mpn:
6010
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
20
width:
8
Product Overview

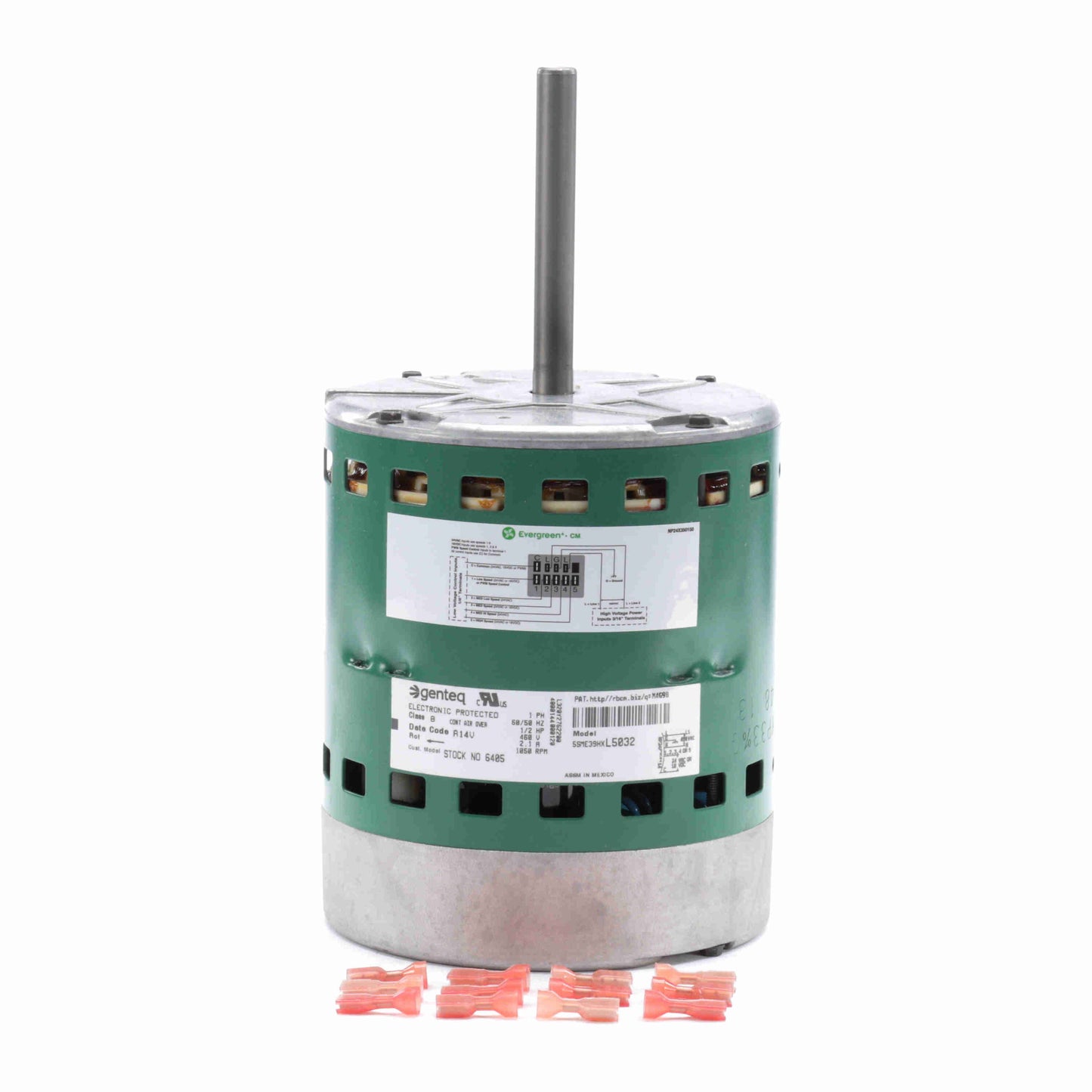

- Evergreen IM - Retrofit Blower Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionNo Protection
Speed1075 rpm
Current11.0/6.7 A
Number of Speeds5
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight20.00 LB
Country Of originMexico
Output HP1 Hp
Output KW0.75 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationReversible
MountingRound
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length6.32 in
Shaft Diameter0.500 in
Shaft Extension4.92 in
CEN
