category:
Electric Motors
height:
8
length:
16
manufacturer:
Century
mpn:
6303
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13.5
width:
8
Product Overview

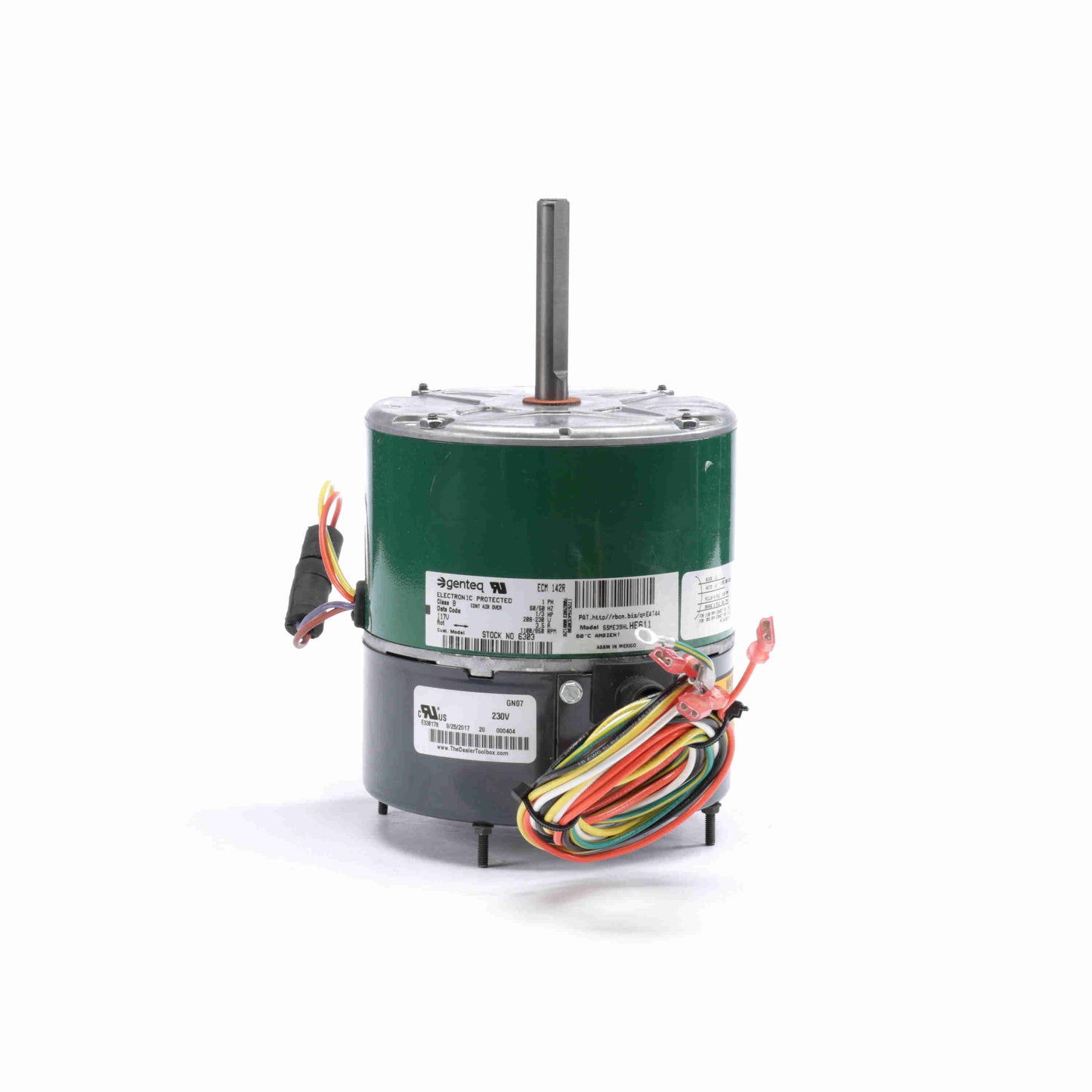

- Evergreen OM - Retrofit Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 55" Leads
- Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionNo Protection
Speed850/1100 rpm
Current3.5 A
Number of Speeds2
Ambient Temperature60 °C
ULNo
Insulation ClassB
CSAN
Weight13.50 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationCounterclockwise/Clockwise
MountingExtended Studs
Motor OrientationVsd
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.07 in
Shaft Diameter0.500 in
Shaft Extension3.00 in
CEN
