category:
Electric Motors
height:
8
length:
16
manufacturer:
Century
mpn:
6301
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11.3
width:
8
Product Overview

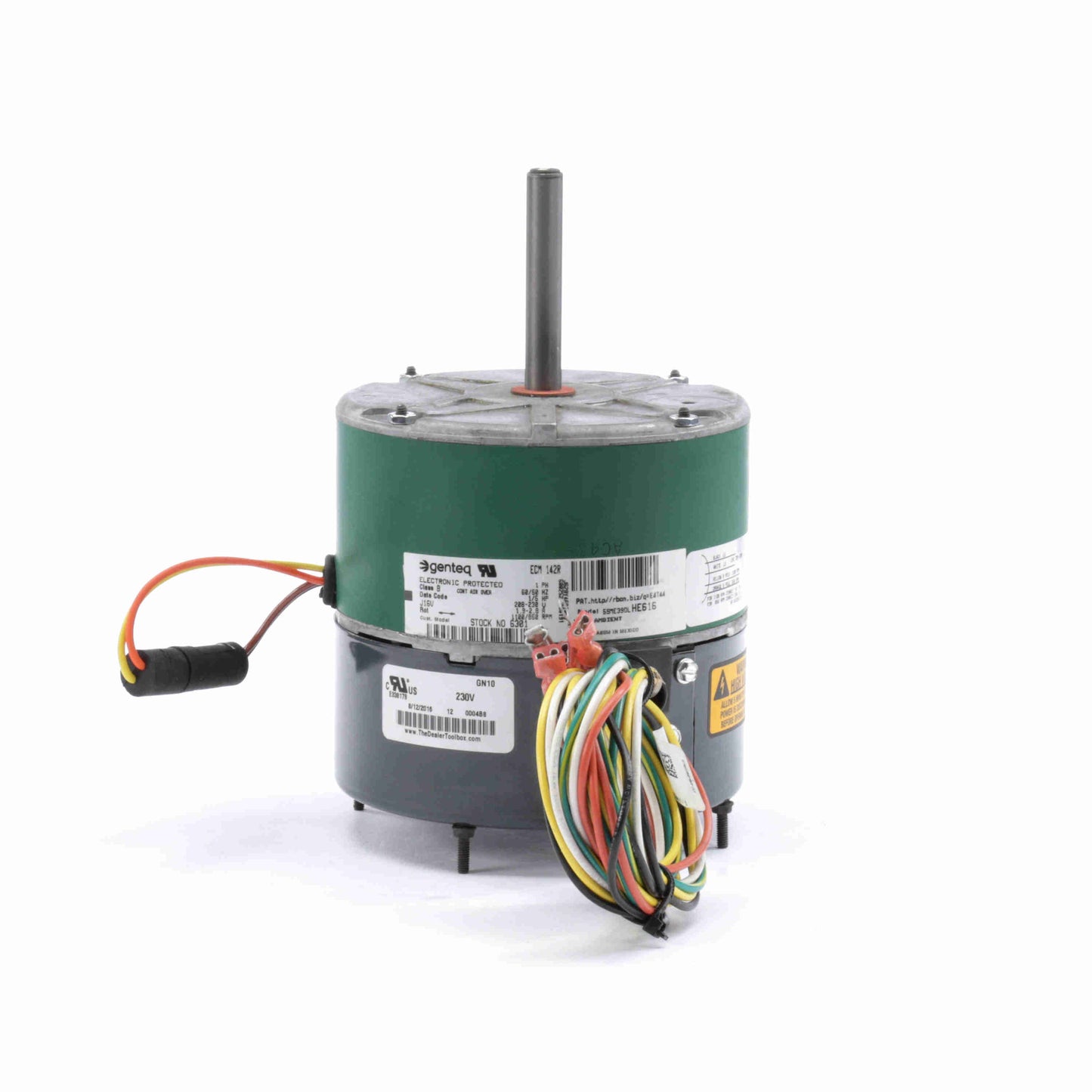

- Evergreen OM - Retrofit Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 55" Leads
- Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionNo Protection
Speed850/1100 rpm
Current2.8 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAN
Weight11.30 LB
Country Of originMexico
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationReversible
MountingExtended Studs
Motor OrientationVertical Shaft Down
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.57 in
Shaft Diameter0.500 in
Shaft Extension3.00 in
CEN
