category:
Electric Motors
height:
7.1
length:
15.5
manufacturer:
Century
mpn:
6507V
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
16.6
width:
6.7
Product Overview

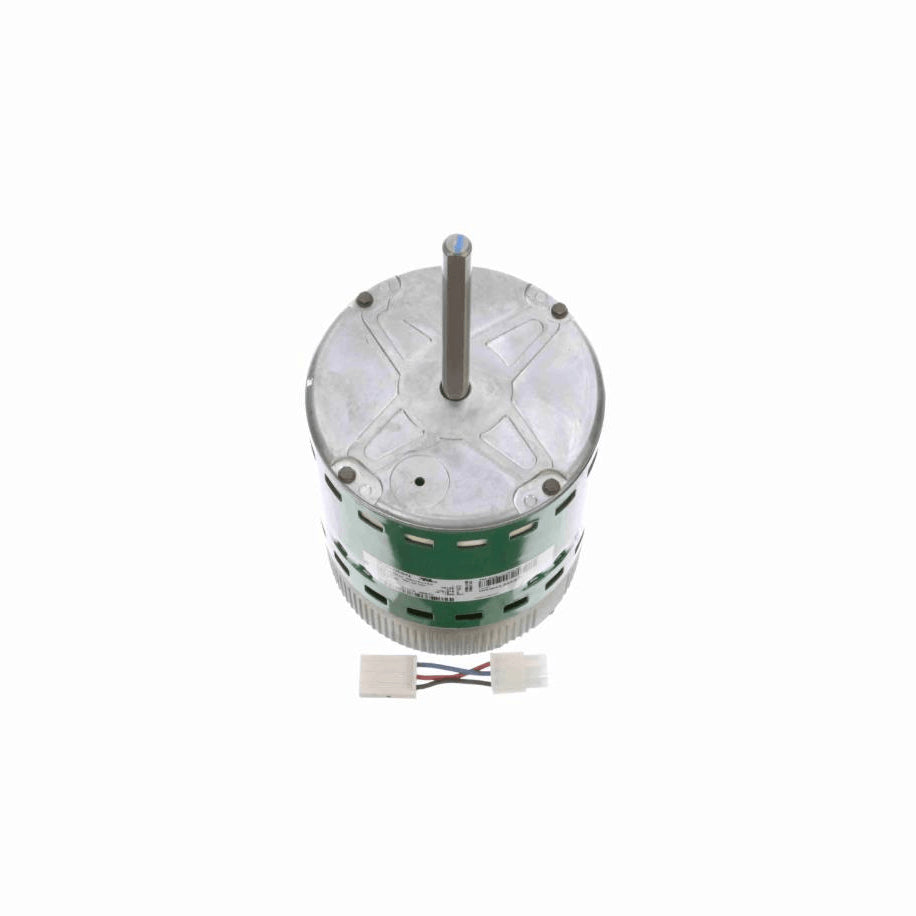

- Evergreen VS - ECM Variable Speed Replacement Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, 55°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- ***Application May Require User Interface Catalog Number 5K010 or 5K010V. For Additional Information Refer to œEvergreen® VS Motors Product Page, or Search œMotor Cross Reference in œTools & Resources for OEM Replacement Cross.
Additional Information
Thermal ProtectionNo Protection
Speed1050 rpm
Current10.1/6.1 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight16.60 LB
Country Of originMexico
Output HP3/4 Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationCounterclockwise/Clockwise
MountingRound
Motor OrientationVsd
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.82 in
Shaft Diameter0.500 in
Shaft Extension5.00 in
CEN
