category:
Electric Motors
height:
6.02
length:
15
manufacturer:
Century
mpn:
3490
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
17
width:
6.04

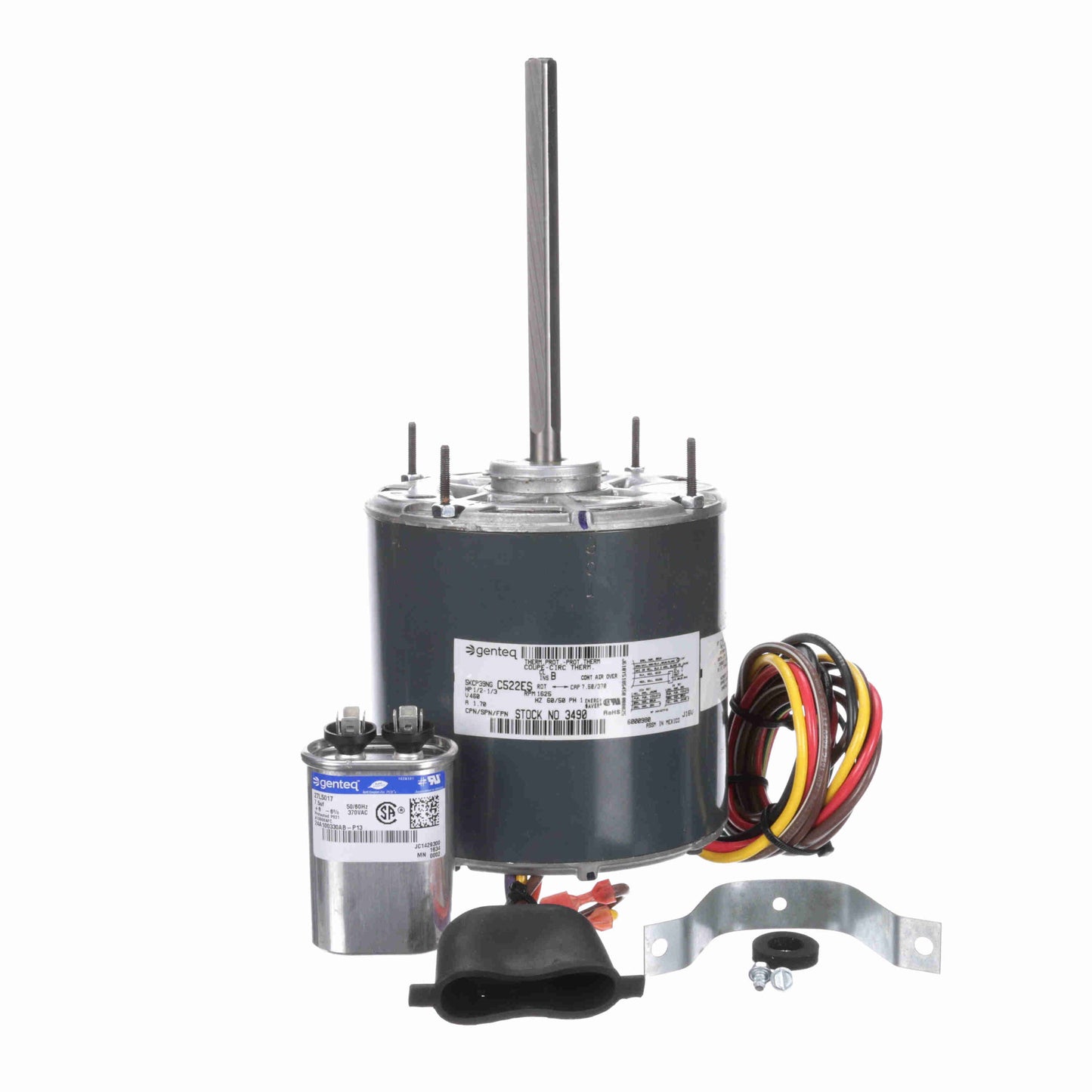

Product Overview
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Serrated Endcaps for Resilient Rings, Extended Clampbolts, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1625 rpm
Current1.70 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight17.00 LB
Country Of originMexico
Output HP1/2-1/3 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingRound
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.82 in
Shaft Diameter0.500 in
Shaft Extension6.00 in
CEN
