category:
Electric Motors
height:
6.02
length:
14.06
manufacturer:
Century
mpn:
3280
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
6.04
Product Overview

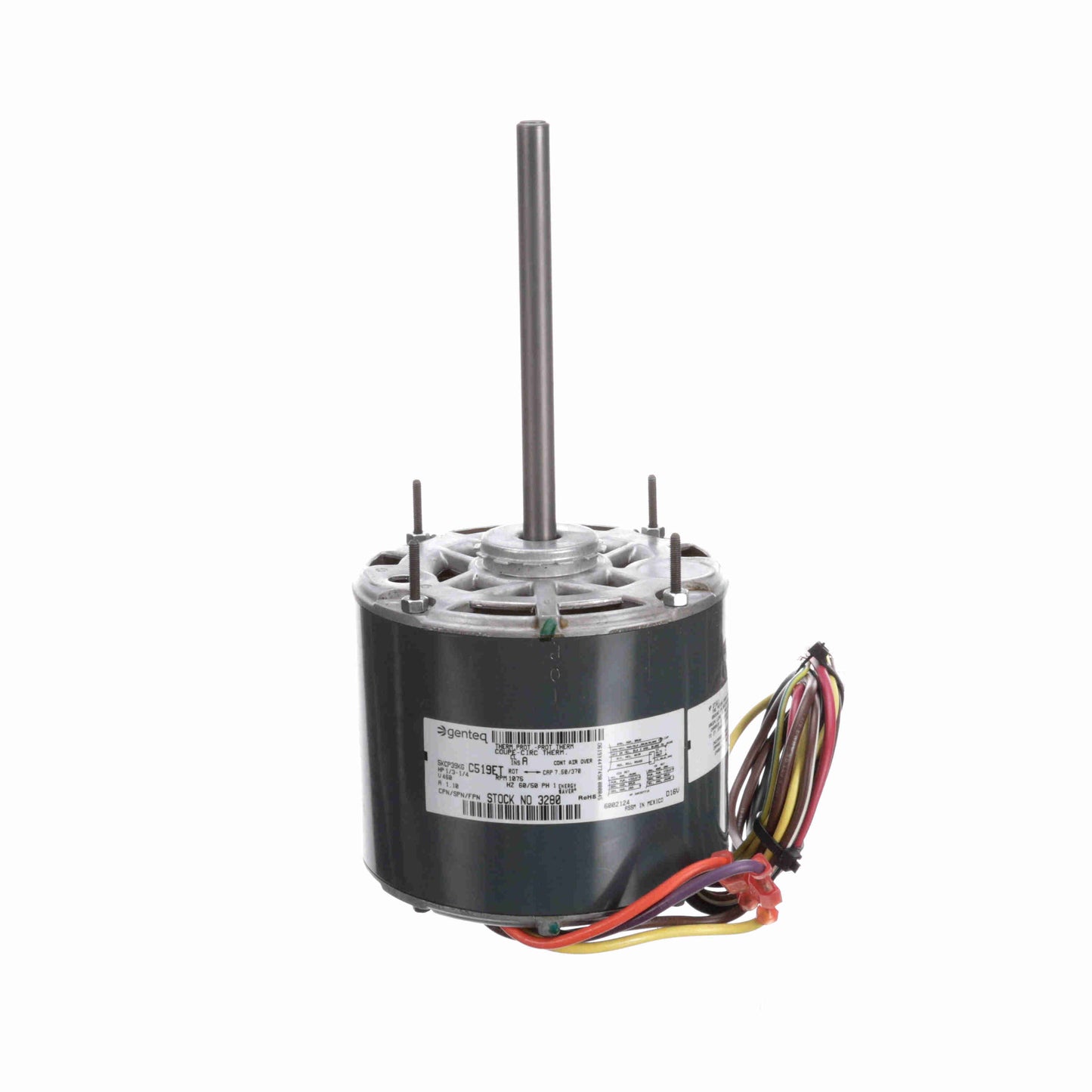

- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Serrated Endcaps for Resilient Rings, Extended Clampbolts, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current1.10 A
Number of Speeds2
Ambient Temperature40 °C
ULNo
Insulation ClassA
CSAN
Weight14.00 LB
Country Of originMexico
Output HP1/3-1/4 Hp
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRound
Motor OrientationHorizontal
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.07 in
Shaft Diameter0.500 in
Shaft Extension6.00 in
CEN
