category:
Electric Motors
height:
6.5
length:
14.12
manufacturer:
Century
mpn:
3994
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12.6
width:
6.38
Product Overview

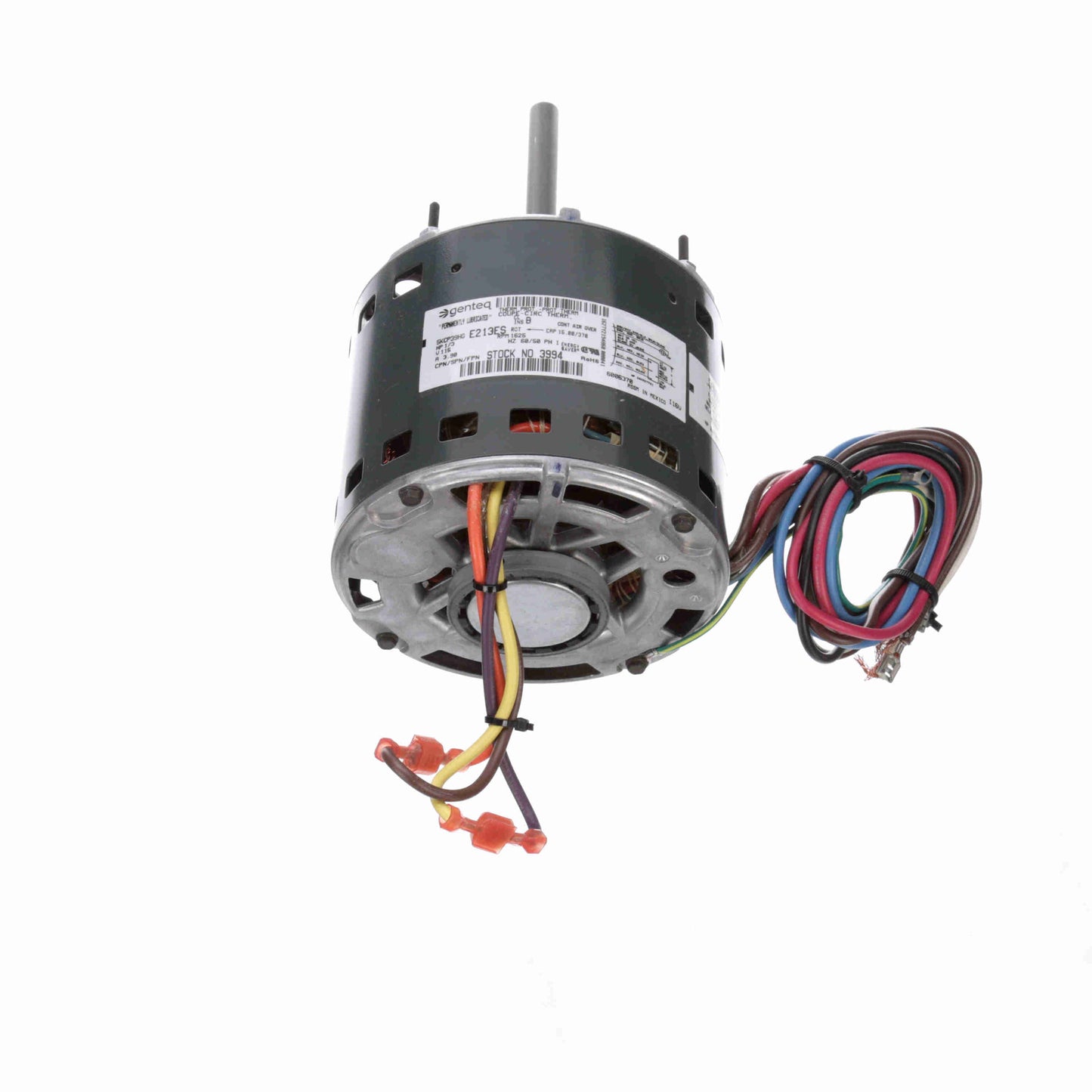

- Direct Drive Fan and Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1625 rpm
Current3.90 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.60 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise
MountingExtended Studs
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.07 in
Shaft Diameter0.500 in
Shaft Extension4.00 in
CEN
