category:
Electric Motors
height:
6.5
length:
21.62
manufacturer:
Century
mpn:
3686
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13.8
width:
6.38
Product Overview

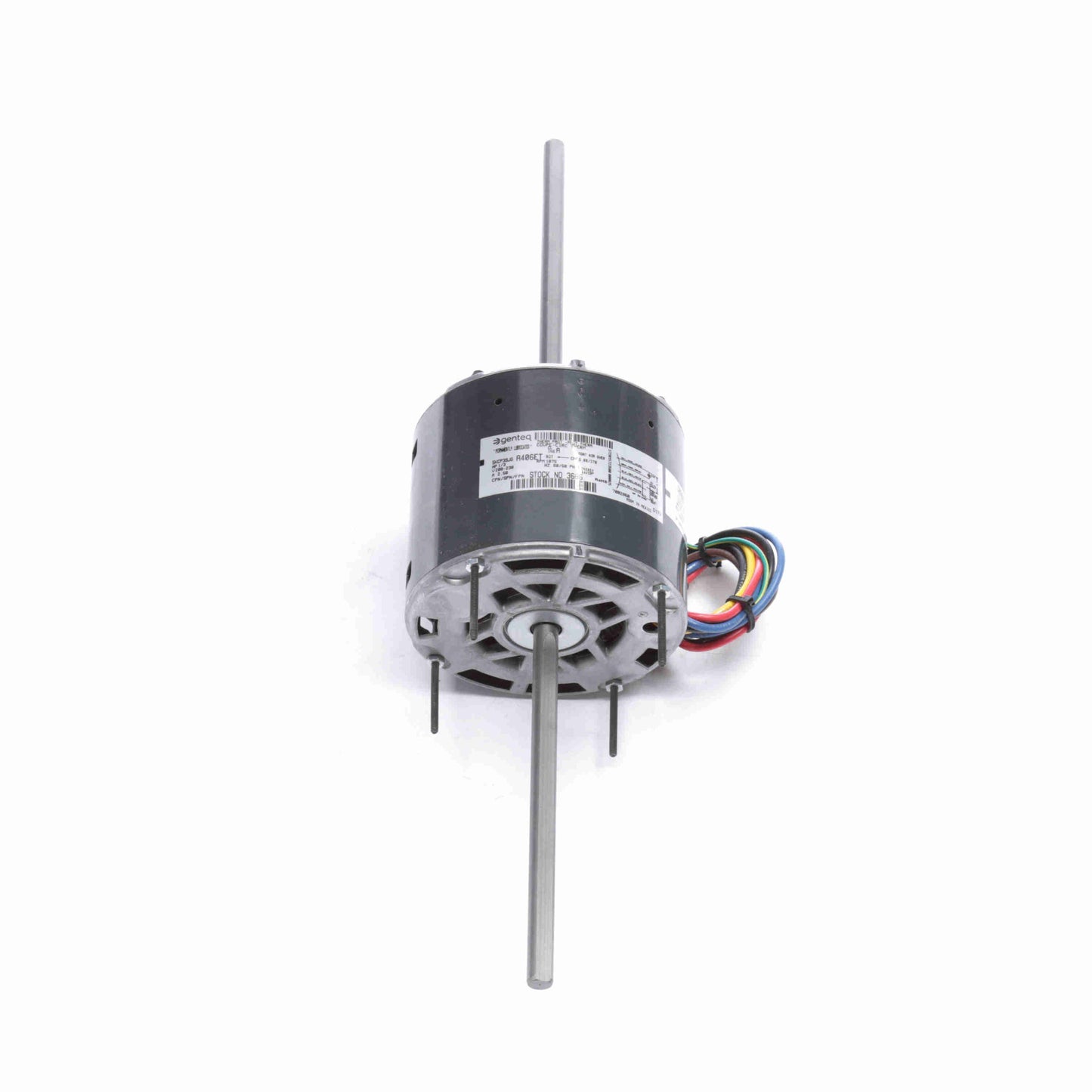

- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- Dual Extension, 1/2" Diameter Shaft with Flat
- 14" Leads
- Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current2.50 A
Number of Speeds3
Ambient Temperature40 °C
ULNo
Insulation ClassA
CSAN
Weight13.80 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.07 in
Shaft Diameter0.500 in
Shaft Extension7.75 in
CEN
