category:
Electric Motors
height:
5.5
length:
15.13
manufacturer:
Century
mpn:
2840
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9.4
width:
5.5
Product Overview

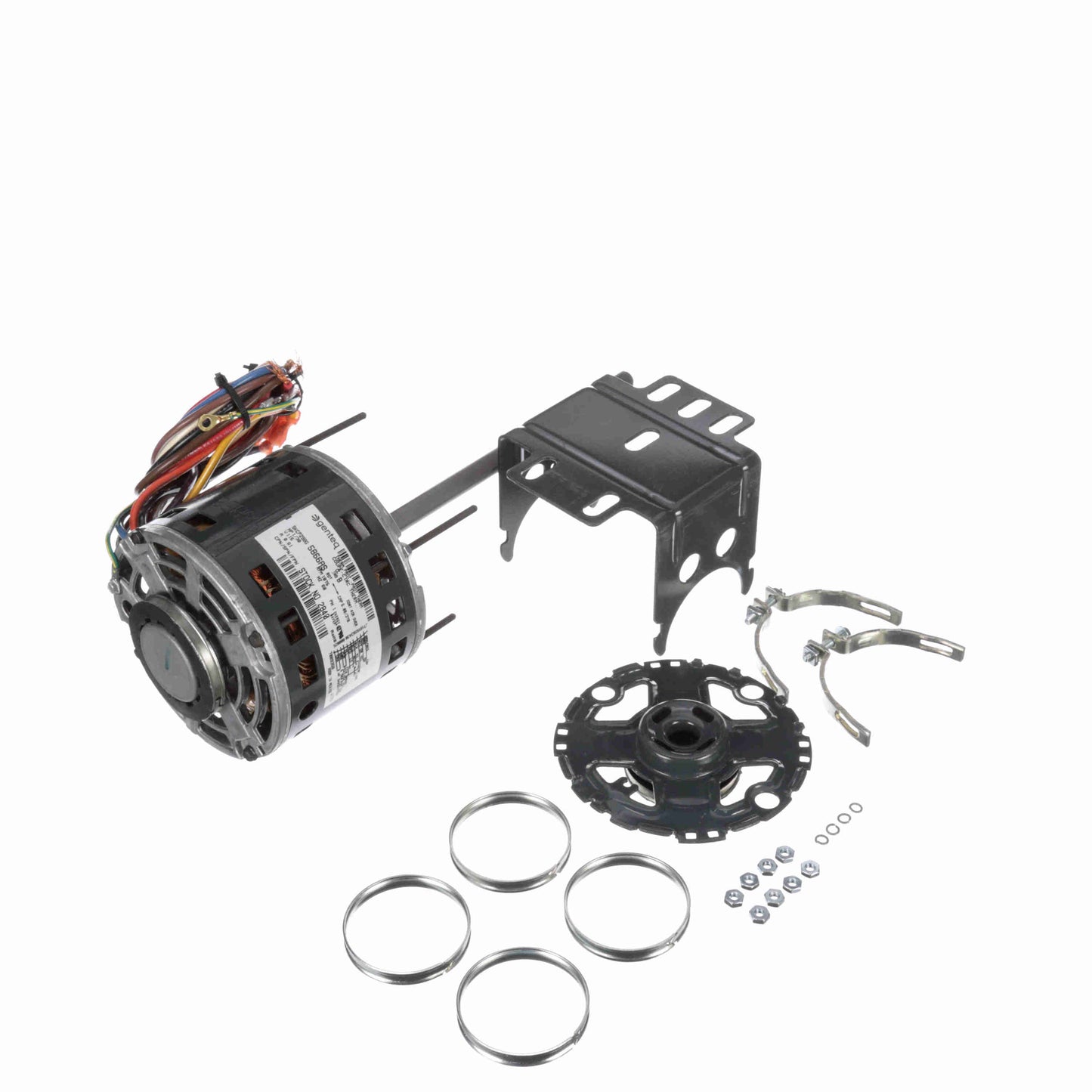

- Direct Drive Fan & Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Resilient Ring Mounting, Extended Clampbolts
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current0.61 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.40 LB
Country Of originMexico
Output HP1/30 Hp
Output KW0.02 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise/Clockwise
MountingResilient Rings
Motor OrientationHor
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.16 in
Shaft Diameter0.500 in
Shaft Extension8.00 in
CEN
