category:
Electric Motors
height:
6.02
length:
15.49
manufacturer:
Century
mpn:
3989
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19.8
width:
6.04
Product Overview

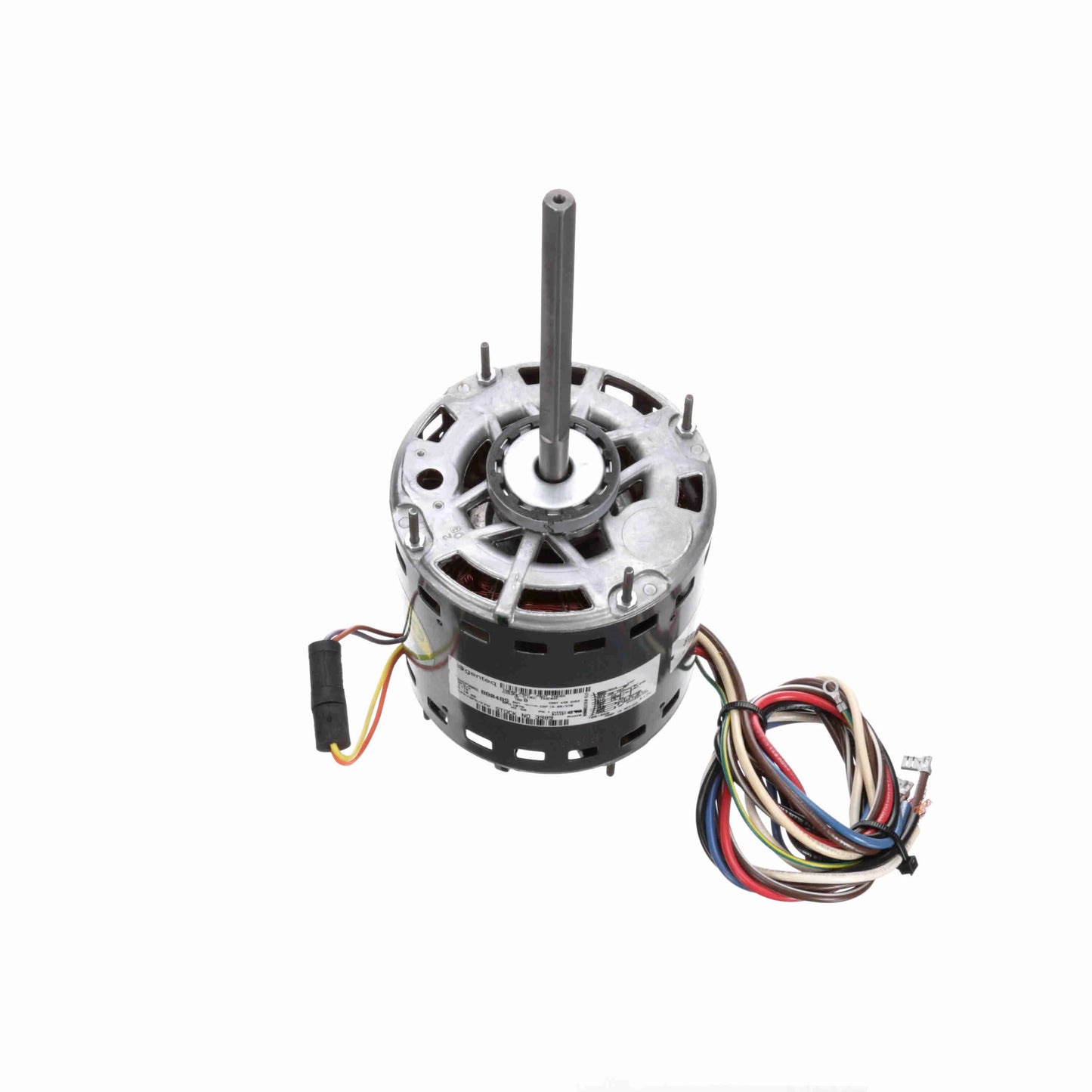

- Direct Drive Fan and Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 30" Leads
- Resilient Ring Mounting, Extended Clampbolts
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current10.00 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.80 LB
Country Of originMexico
Output HP3/4 Hp
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Rings
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.07 in
Shaft Diameter0.500 in
Shaft Extension6.50 in
CEN
