category:
Electric Motors
height:
6.5
length:
21.62
manufacturer:
Century
mpn:
3898
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18.6
width:
6.38
Product Overview

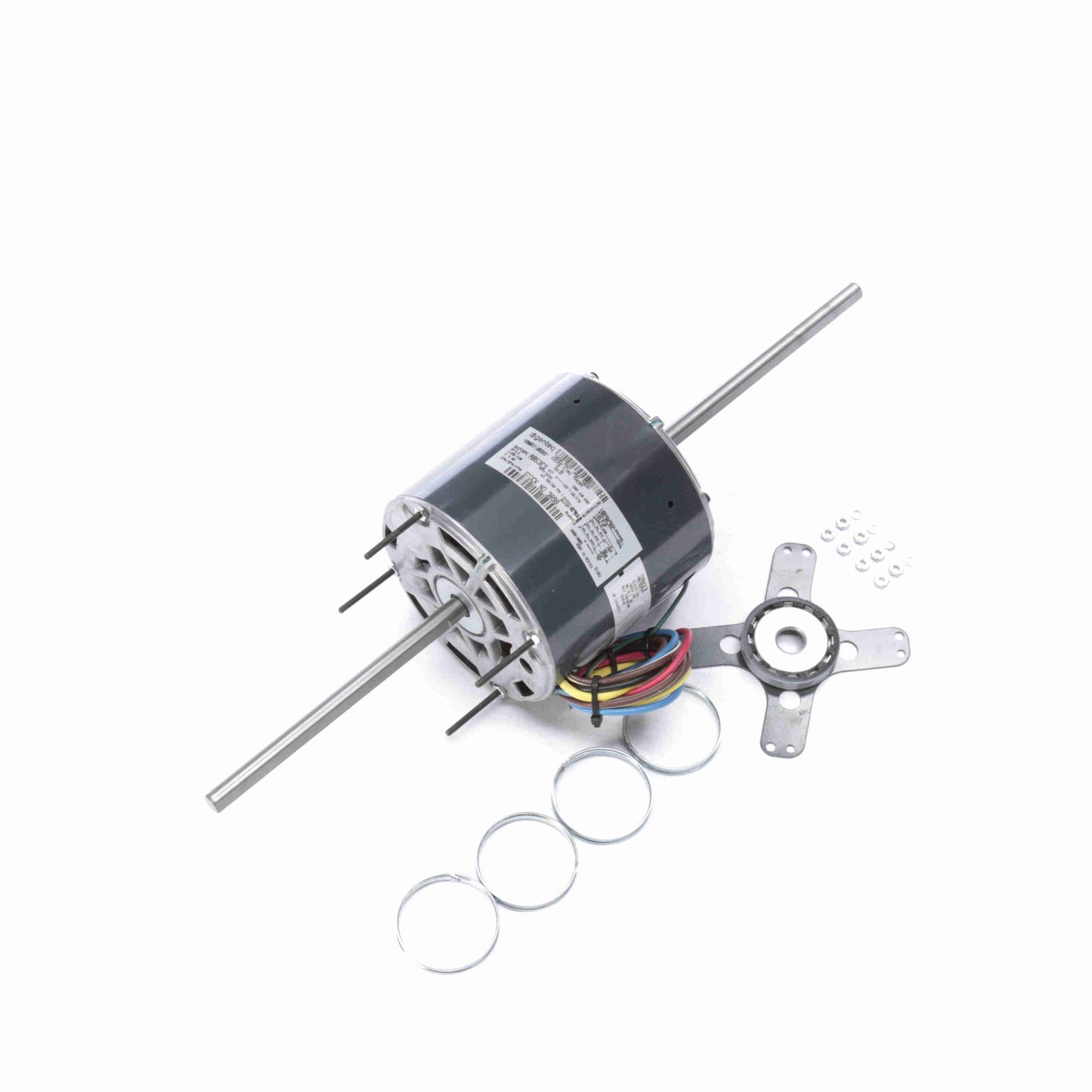

- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- Dual Extension, 1/2" Diameter Shaft with Flat
- 14" Leads
- Extended Studs Lead End, 1 Resilient Ring, Length Adapter Kit Included, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1625 rpm
Current3.90 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.60 LB
Country Of originMexico
Output HP3/4 Hp
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise
MountingResilient Ring
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.82 in
Shaft Diameter0.500 in
Shaft Extension7.00 in
HTC8501.40.4040
CEN
