category:
Electric Motors
height:
5.5
length:
26.25
manufacturer:
Century
mpn:
2836
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11.2
width:
5.5

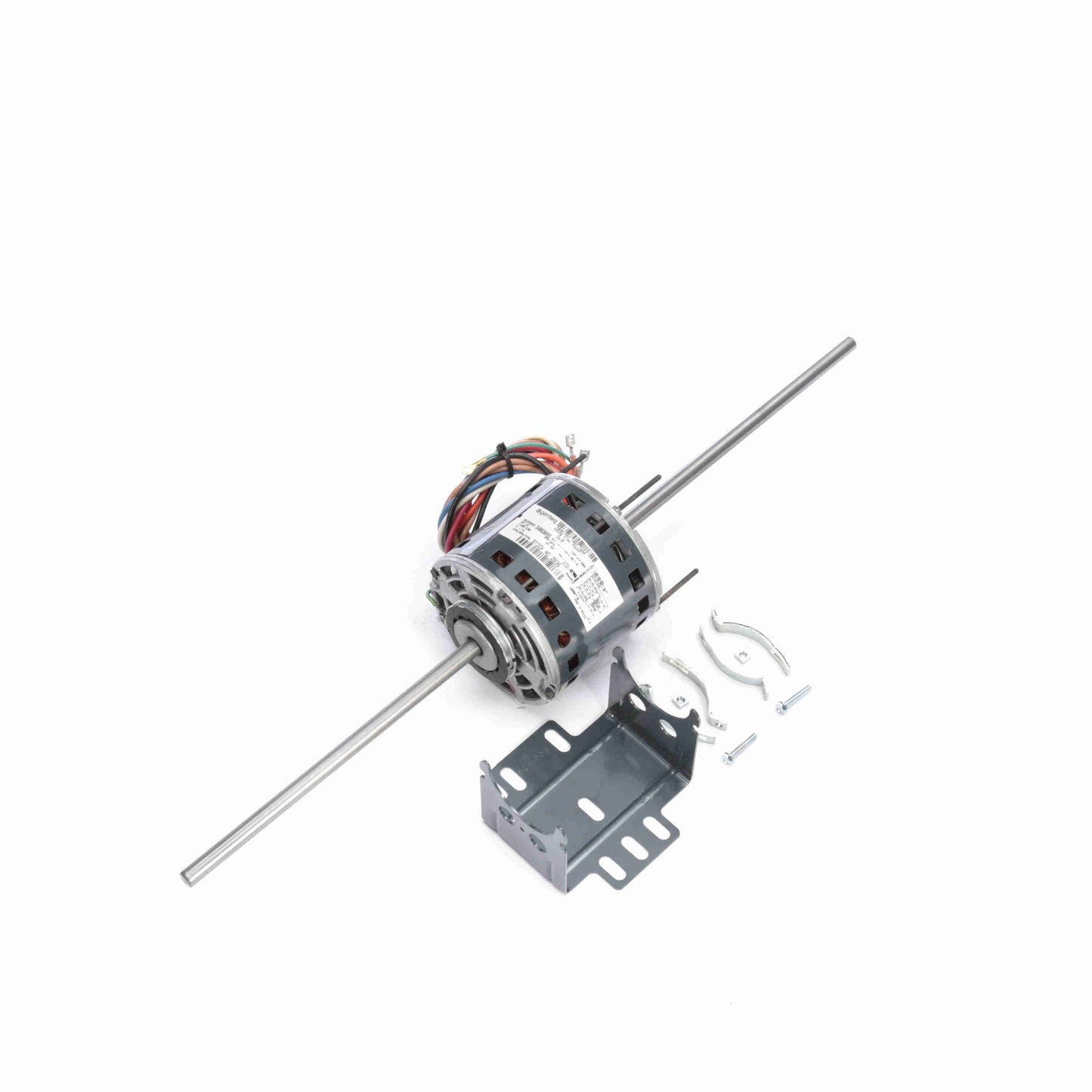

Product Overview
- Fan Coil - Room Air Conditioner - Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- Dual Extension, 1/2" Diameter Shaft with Flat
- 26" Leads
- Resilient Ring Mounting, Extended Clampbolts
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current1.14 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.20 LB
Country Of originMexico
Output HP1/8 Hp
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.66 in
Shaft Diameter0.500 in
Shaft Extension10.00 in
CEN
