category:
Electric Motors
height:
6.02
length:
15
manufacturer:
Century
mpn:
3459HS
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15.8
width:
6.04
Product Overview

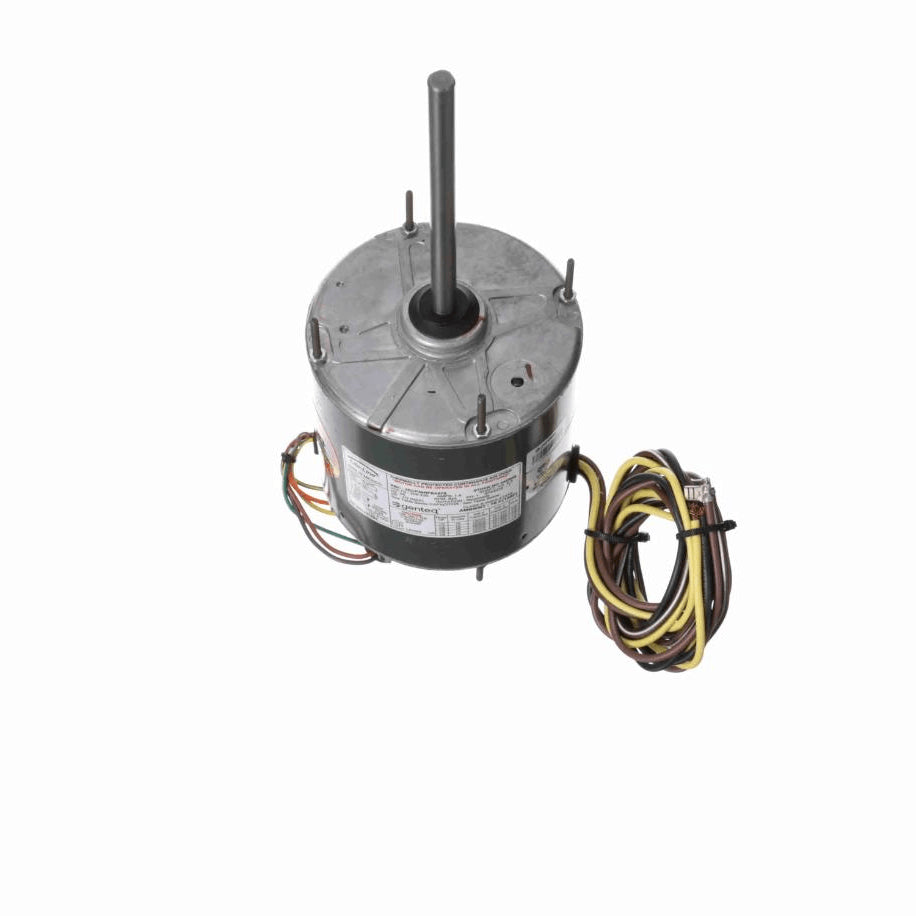

- Heat Shield - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Shaft Down, Extended Clampbolts, Mounting Holes in Shell, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed825 rpm
Current1.80 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.80 LB
Country Of originMexico
Output HP1/3-1/8 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingRound Belly Band
Motor OrientationVertical Shaft Down
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.82 in
Shaft Diameter0.500 in
Shaft Extension6.50 in
CEN
