category:
Electric Motors
height:
6.02
length:
14.06
manufacturer:
Century
mpn:
3732HS
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
6.04

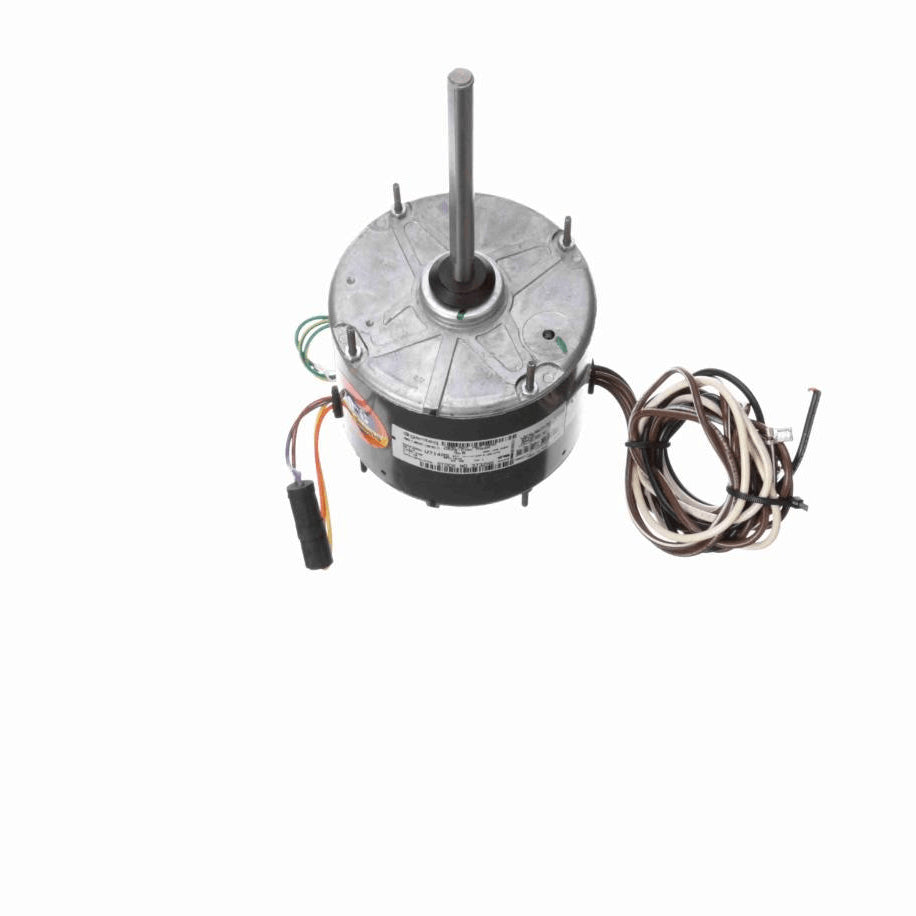

Product Overview
- Heat Shield - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current1.70 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/4 Hp
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRound Belly Band
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.82 in
Shaft Diameter0.500 in
Shaft Extension6.50 in
