category:
Electric Motors
height:
4
length:
5.75
manufacturer:
Century
mpn:
MD5411S
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.74
width:
6.5
Product Overview

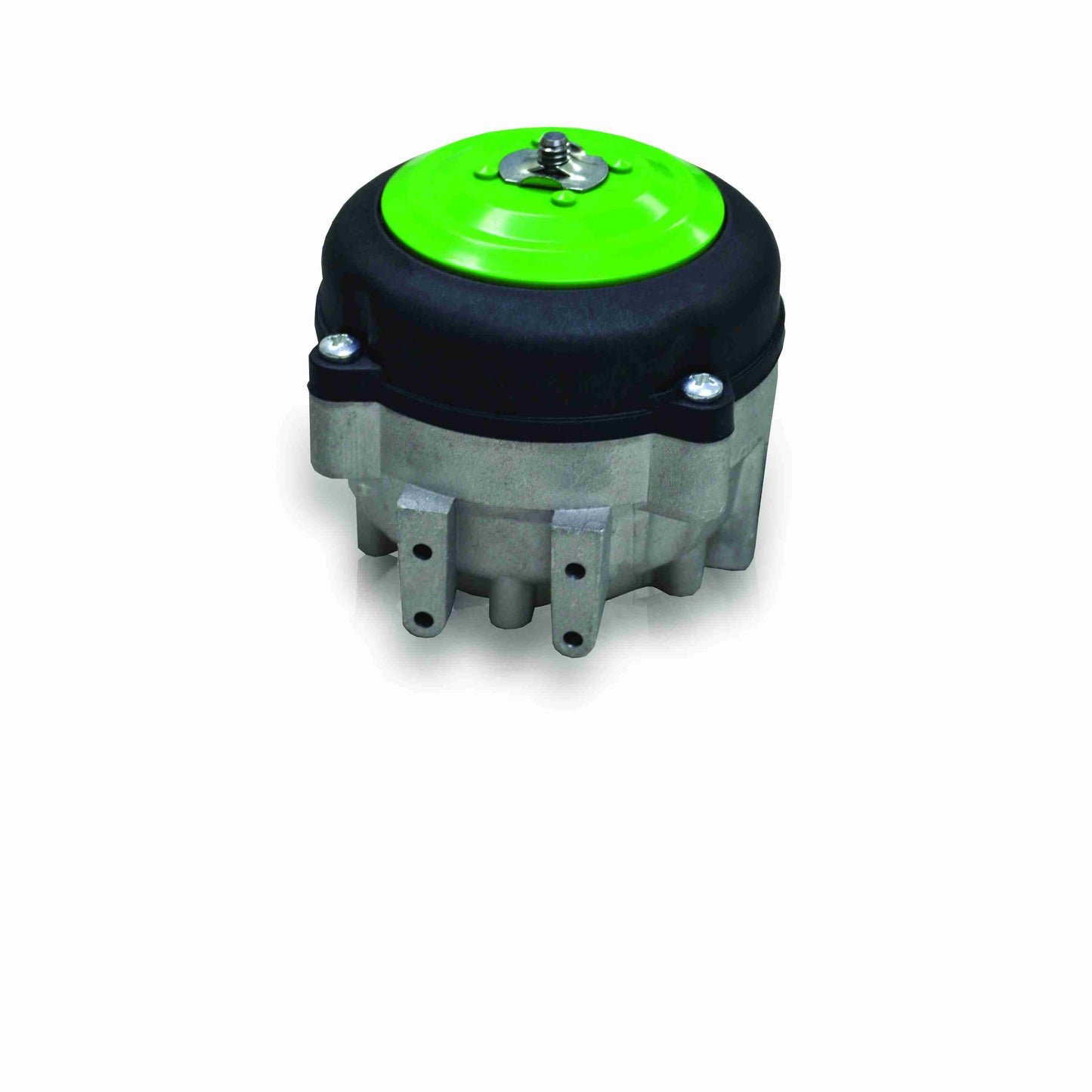

- ECM - KRYO FORTRESS Motor - Refrigeration
- Unit Bearing
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- IP66 and IP67, -40°C to 55°C (-40°F to 131°F)
- Ball Bearing
- 1/4 x 20 Threaded Shaft
- 27" Leads, with 2-pin, flying lead with 1/4 insulated female quick connect
- Drilled Double Boss), 5 Cored Rear Mounting Holes (3 and 4 hole mounting)
Additional Information
Thermal ProtectionAutomatic
Current0.55-0.3 A
Number of Speeds1
Ambient Temperature55 °C
ULRecognized
Insulation ClassB
CSAYes
Weight2.74 LB
Country Of originMexico
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
PolesNA
RotationClockwise/Counterclockwise
MountingRound
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialAluminum
Shaft TypeThreaded
Frame Length3.22 in
Shaft Diameter0.250 in
Shaft Extension0.32 in
Output Watts4-20 W
CENo
Starting MethodAcross The Line
