category:
Electric Motors
height:
6.5
length:
14.12
manufacturer:
Century
mpn:
3S029
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
6.38

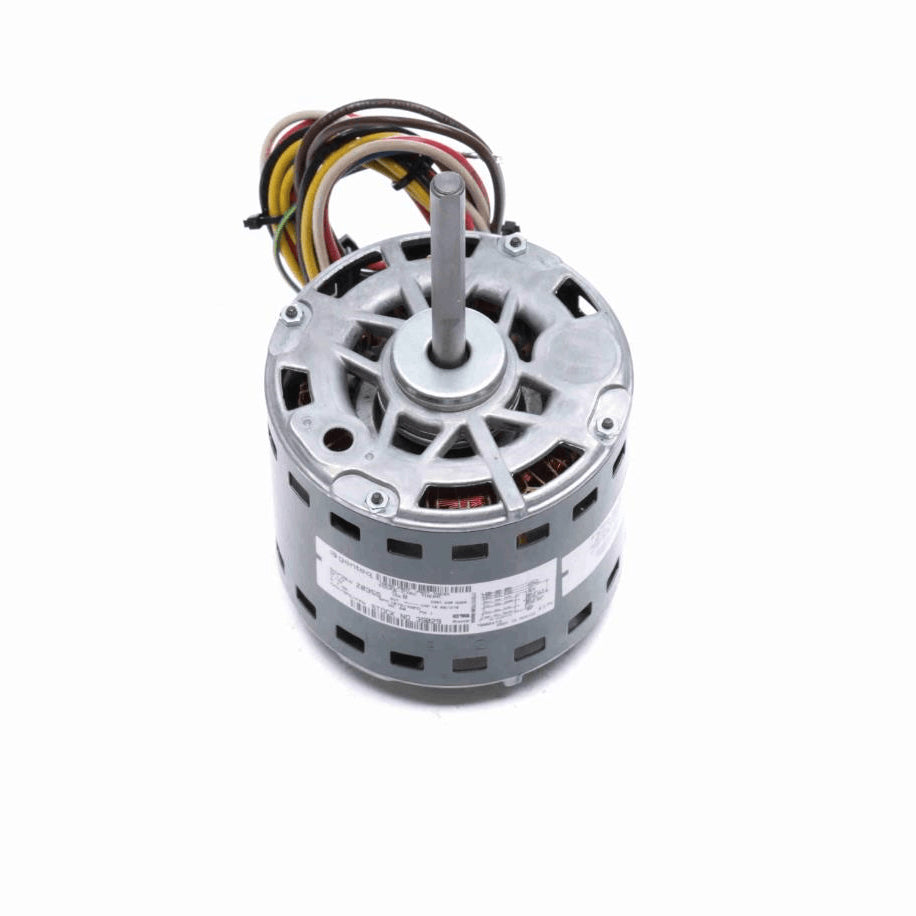

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 30" Leads
- Non-Stock at Lead-Time “ Multiple Quantities of 80
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current7.90 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight14.00 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingRound
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.32 in
Shaft Diameter0.500 in
Shaft Extension4.00 in
CEN
