category:
Electric Motors
height:
9.94
length:
14.12
manufacturer:
Century
mpn:
3925
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
22.4
width:
10.88

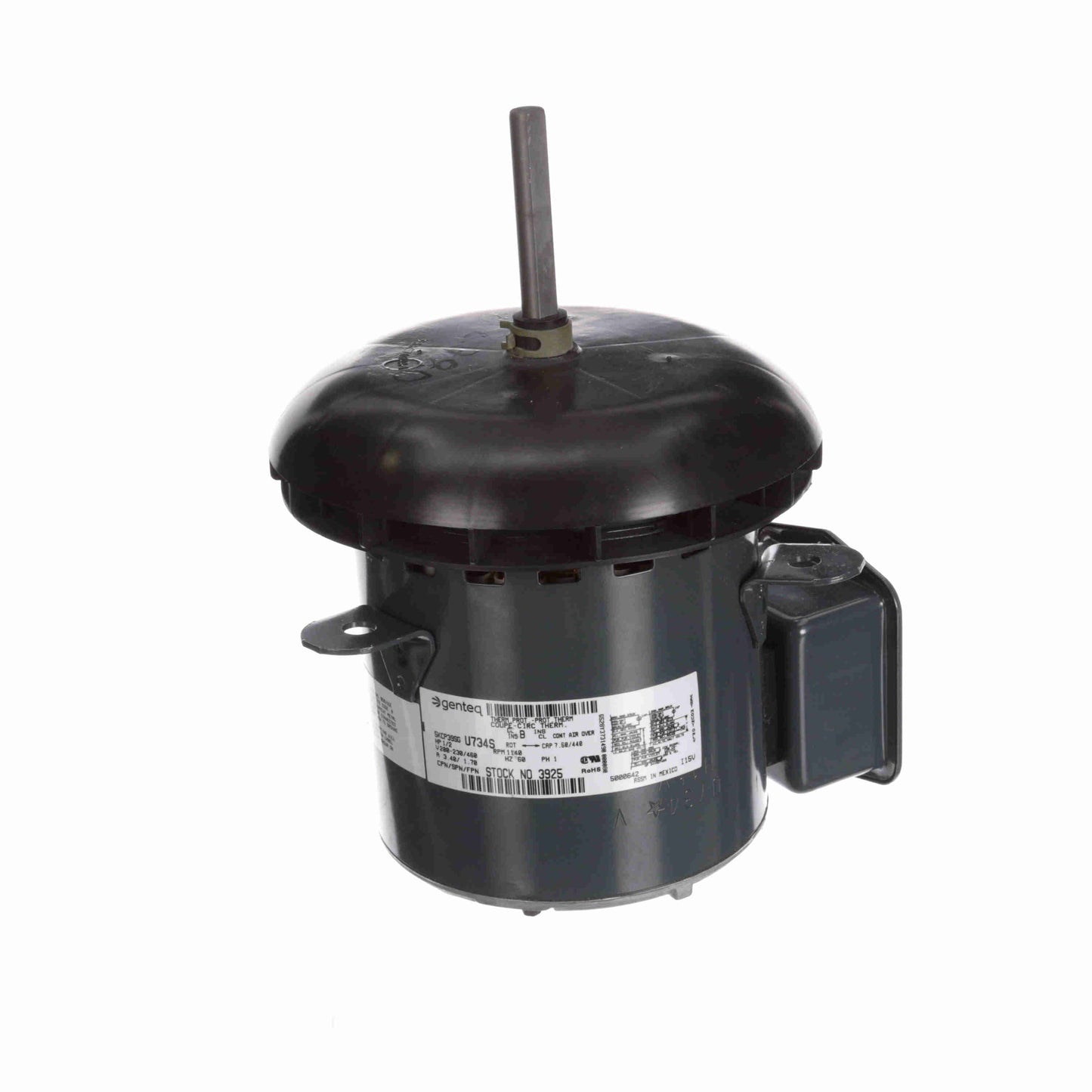

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- Conduit Box
- Rigid Lug, Extended Clampbolts OPE
Additional Information
Thermal ProtectionThermally Protected
Speed1140 rpm
Current3.40/ 1.70 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight22.40 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingLug
Motor OrientationVertical Shaft Up
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.32 in
Shaft Diameter0.500 in
Shaft Extension4.00 in
CEN
