category:
Electric Motors
height:
9.94
length:
14.12
manufacturer:
Century
mpn:
3912
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12.8
width:
10.88

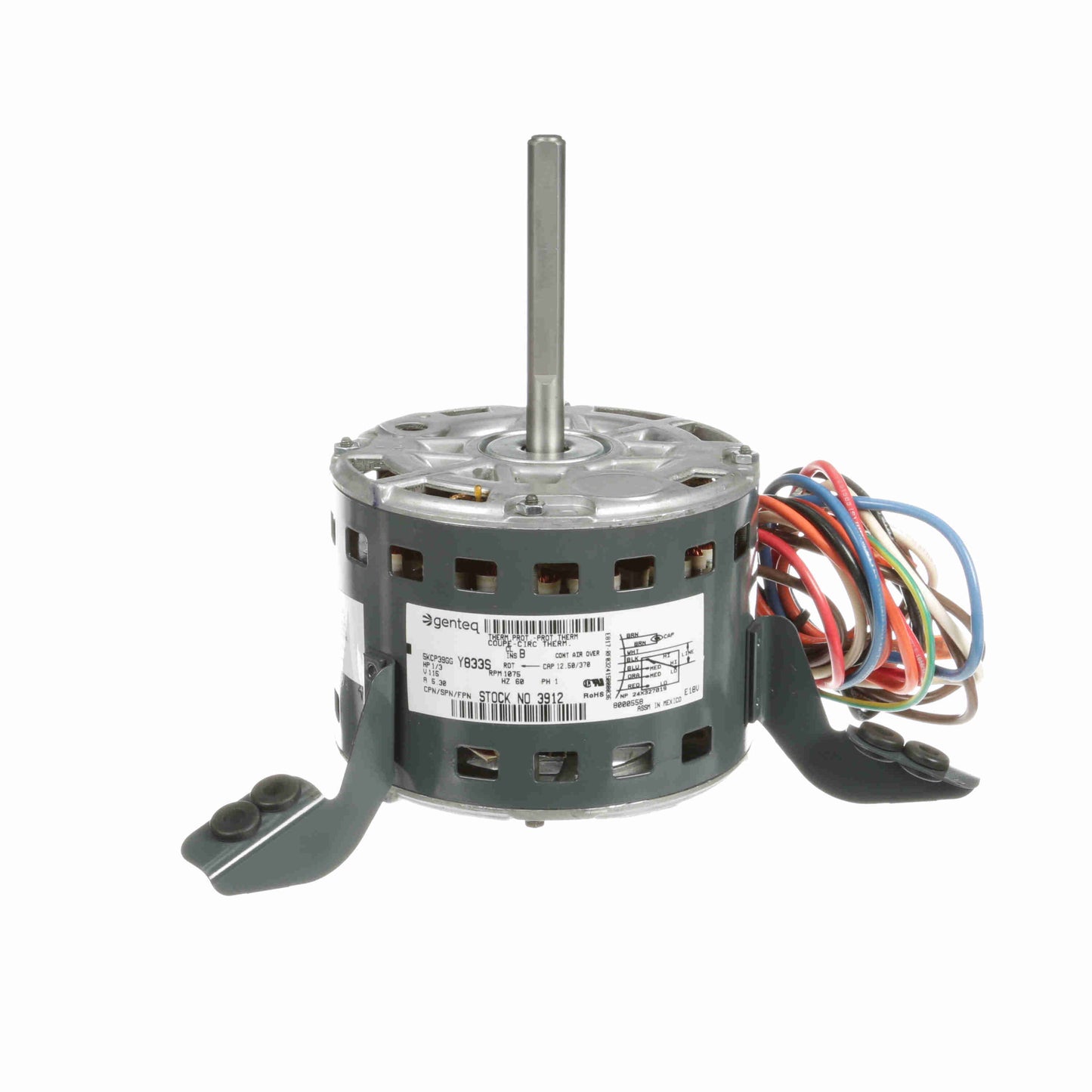

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 25" Leads
- Torsion Flex Lug Mounting
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current5.30 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.80 LB
Country Of originMexico
Output HP1/3 Hp
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingLug
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.57 in
Shaft Diameter0.500 in
Shaft Extension4.00 in
CEN
