category:
Electric Motors
height:
9.94
length:
14.12
manufacturer:
Century
mpn:
3S062
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14.6
width:
10.88

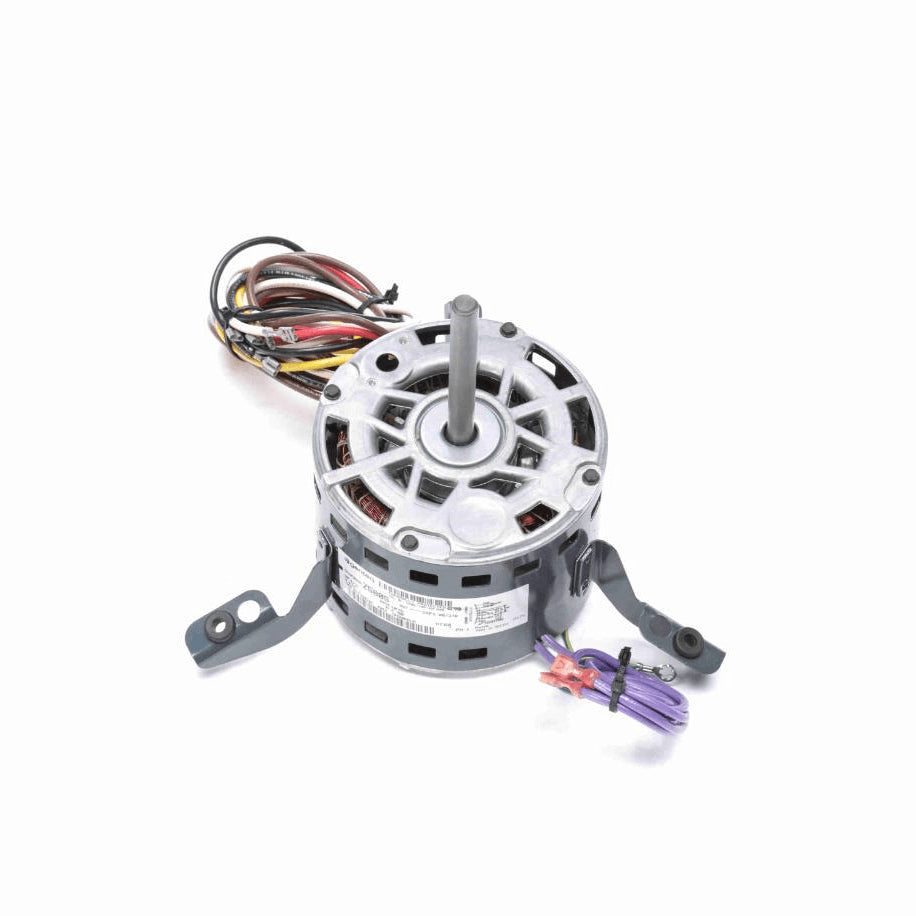

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 44" Leads, Torsion Flex Lug Mounting
- Non-Stock at Lead-Time “ Multiple Quantities of 32
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current4.90 A
Number of Speeds4
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight14.60 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingLug
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.82 in
Shaft Diameter0.500 in
Shaft Extension4.00 in
CEN
