category:
Electric Motors
height:
8
length:
22.56
manufacturer:
Century
mpn:
3122
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
15
width:
8.38

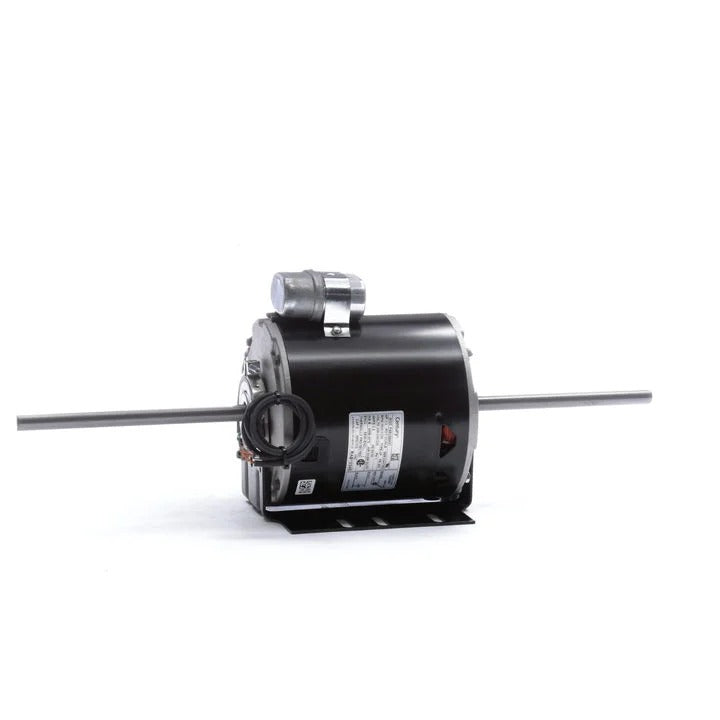

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- Dual Extension, 1/2" Diameter Shaft with Flat
- 12" Leads
- Resilient Base
Additional Information
Thermal ProtectionThermally Protected
Speed1625/1350 rpm
Current2.50 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight15.00 LB
Country Of originMexico
Output HP1/3 Hp
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise
MountingResilient Base
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.32 in
Shaft Diameter0.500 in
Shaft Extension6.00 in
CEN
