category:
Electric Motors
height:
6.5
length:
14.12
manufacturer:
Century
mpn:
3S069
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14
width:
6.38

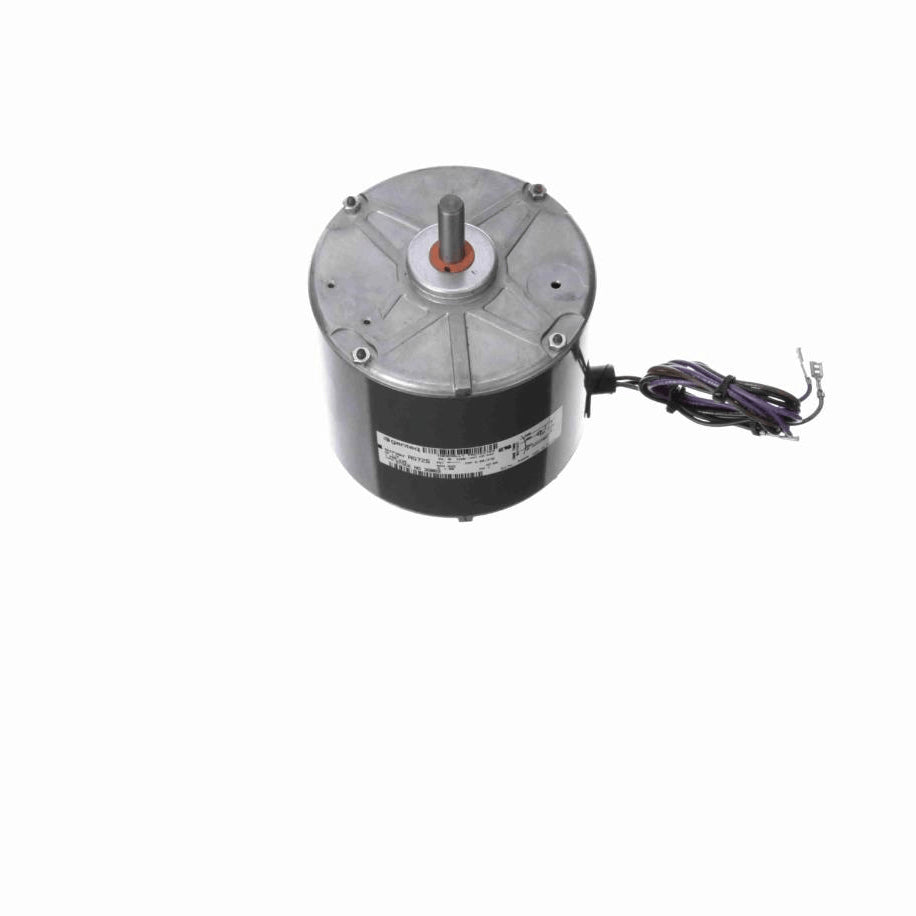

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" and 39" Leads
- 4.33BC Lead End End-Frame, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed825 rpm
Current1.00 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight14.00 LB
Country Of originMexico
Output HP1/6 Hp
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise
MountingRound
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.32 in
Shaft Diameter0.500 in
Shaft Extension1.50 in
