category:
Electric Motors
height:
6.02
length:
13.24
manufacturer:
Century
mpn:
3911
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
6.04

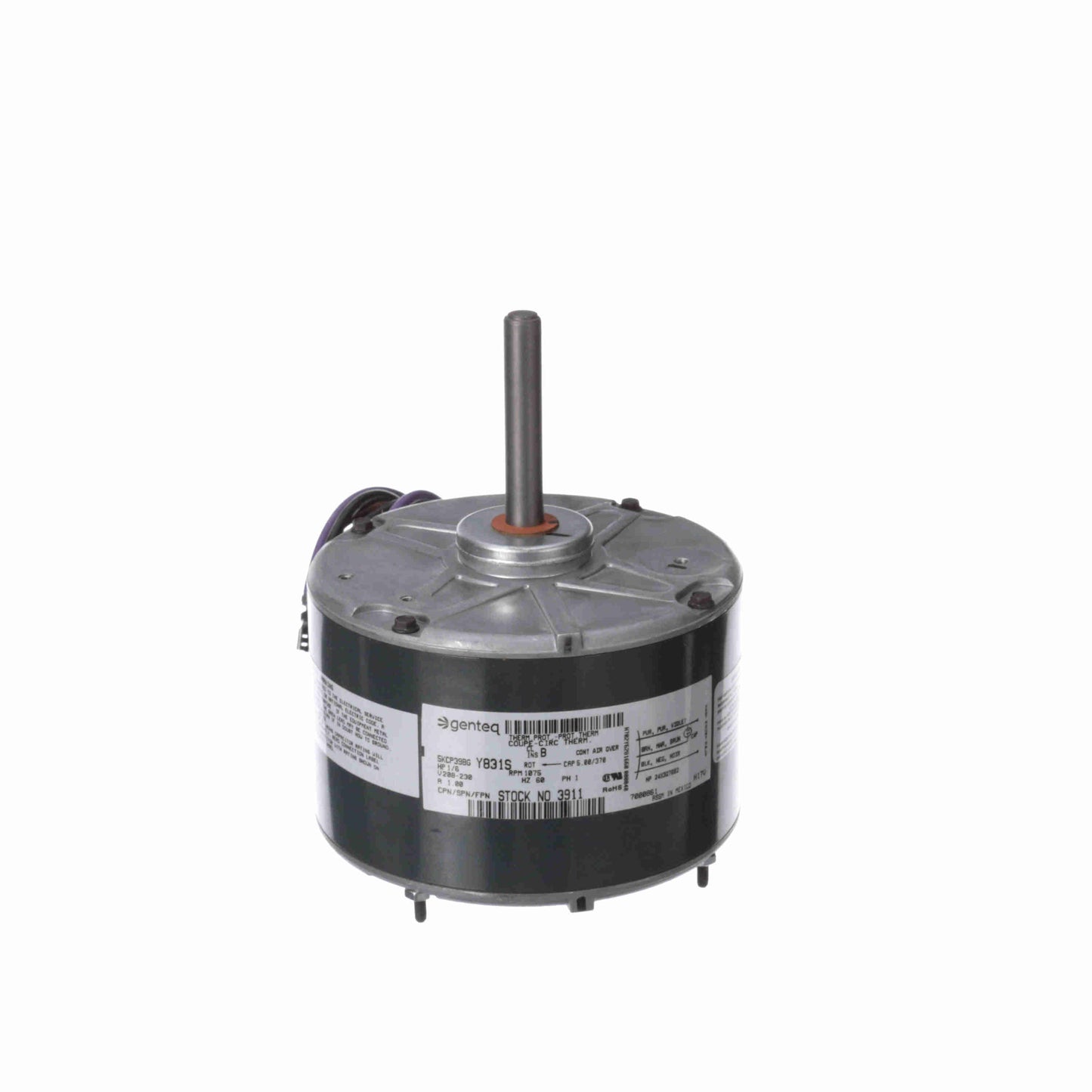

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 41" Leads
- Extended Studs, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current1.00 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingExtended Studs
Motor OrientationVsd
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.07 in
Shaft Diameter0.500 in
Shaft Extension3.17 in
CEN
