category:
Electric Motors
height:
6.02
length:
15
manufacturer:
Century
mpn:
3920
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
18
width:
6.04

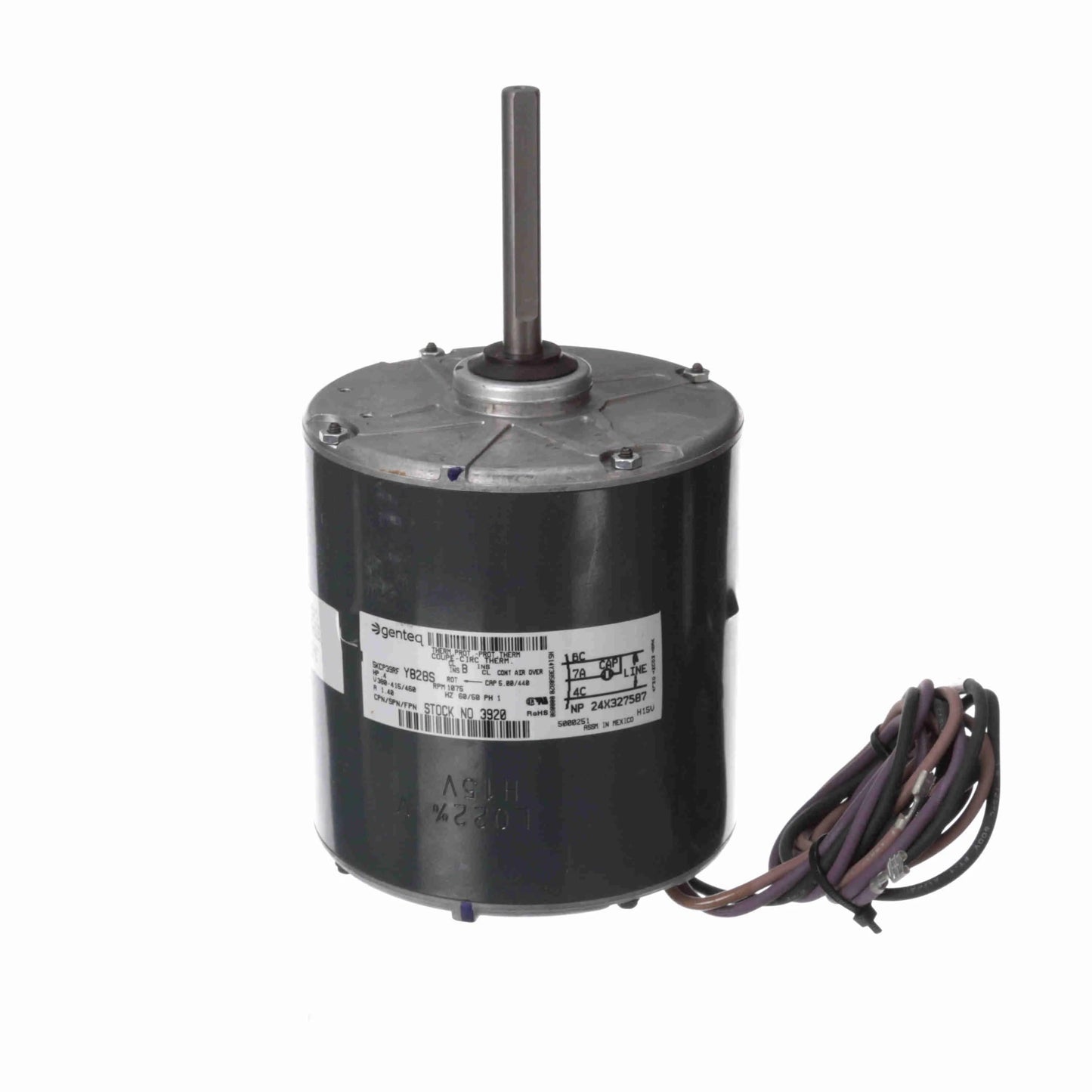

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 43" Leads
- Shaft Up, Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current1.40 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight18.00 LB
Country Of originMexico
Output HP.4 Hp
Output KW0.30 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise
MountingLug
Motor OrientationVertical Shaft Up
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length5.32 in
Shaft Diameter0.500 in
Shaft Extension3.50 in
CEN
