category:
Electric Motors
height:
6.5
length:
14.12
manufacturer:
Century
mpn:
5R007
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12.38
width:
6.38
Product Overview

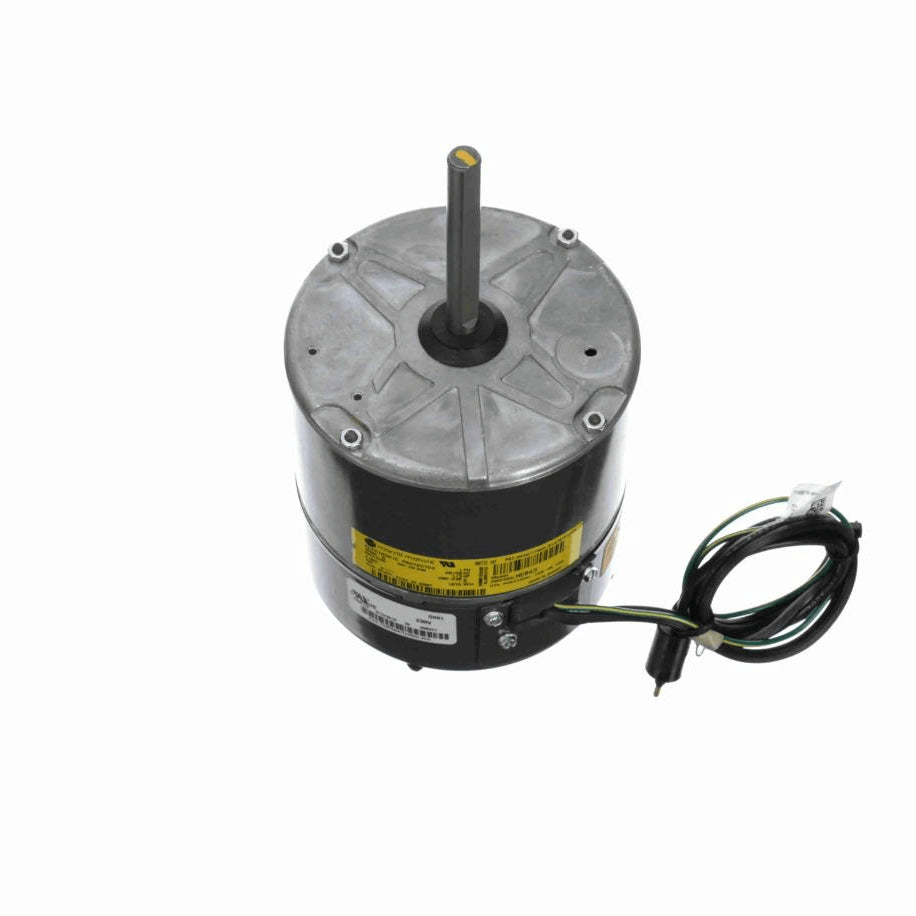

- ARKTIC 142 - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26.5 Lead Length with Molded Plug
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionNo Protection
Speed1075 rpm
Current3.5 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight12.38 LB
Country Of originMexico
Output HP1/3 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeElectronically Commutated Motor
Poles12
RotationCounterclockwise
MountingRound
Motor OrientationHor
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.07 in
Shaft Diameter0.500 in
Shaft Extension3.92 in
CEN
