Goodman

Goodman 1.5 Ton 14.5 SEER2 80% AFUE 40,000 BTU Goodman Gas Furnace and AC+ Heat System - Horizontal

Goodman 1.5 Ton 14.5 SEER2 80% AFUE 40,000 BTU Goodman Gas Furnace and AC+ Heat System - Horizontal

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi027-GSZH501810CHPTA1822A4GM9S800403AN

Regular price $3,830.00 USD
Regular price Sale price $3,830.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 18000 BTU
category: Furnaces
furnace_efficiency_afue: 80%
heating_capacity: 18000 BTU
manufacturer: Goodman
mpn: GSZH501810CHPTA1822A4GM9S800403AN
subcategory: AC Units,Furnaces & Heat Pumps
type: AC Units
weight: 324

Product Description

Goodman - GSZH501810CHPTA1822A4GM9S800403AN At one of the higher efficiencies on the market, the Goodman GSZH501810 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZH501810 is considered a good all-around choice for many applications.

Features
  • Designed to cover a smaller house in average climates
  • 1.5 ton, 15.2 SEER2 heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

Additional Information

MPNGSZH501810
Weight (in lbs) 186.000000
Brand/Manufacturer Goodman
Replaces GSZ160181
Cooling BTU 18,000
Heating BTU 18,000
Blower Motor Single Speed Motor
Decibel Level (dBA) 68
Horsepower 0.167 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 20 Amps
Min. Breaker Size 12.2 Amps
Tonnage 1.5 Ton
Connection Sweat
Height 39 1/2"
Width 29"
Depth 29"
Warranty 10 Years Parts with Online Registration

1.5 Ton 14" Height Goodman Horizontal Evaporator Coil - Cased

The Goodman CHPTA1822A4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA1822A4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 1.5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

Additional Information

MPNCHPTA1822A4
Weight (in lbs) 48.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A
Liquid Line 3/8"
Suction Line 3/4"
Tonnage 1.5 Ton
Style A-Coil
Certification ETL Listed
Height 14"
Width 22"
Depth 21"
Warranty 10 Years Parts with Online Registration

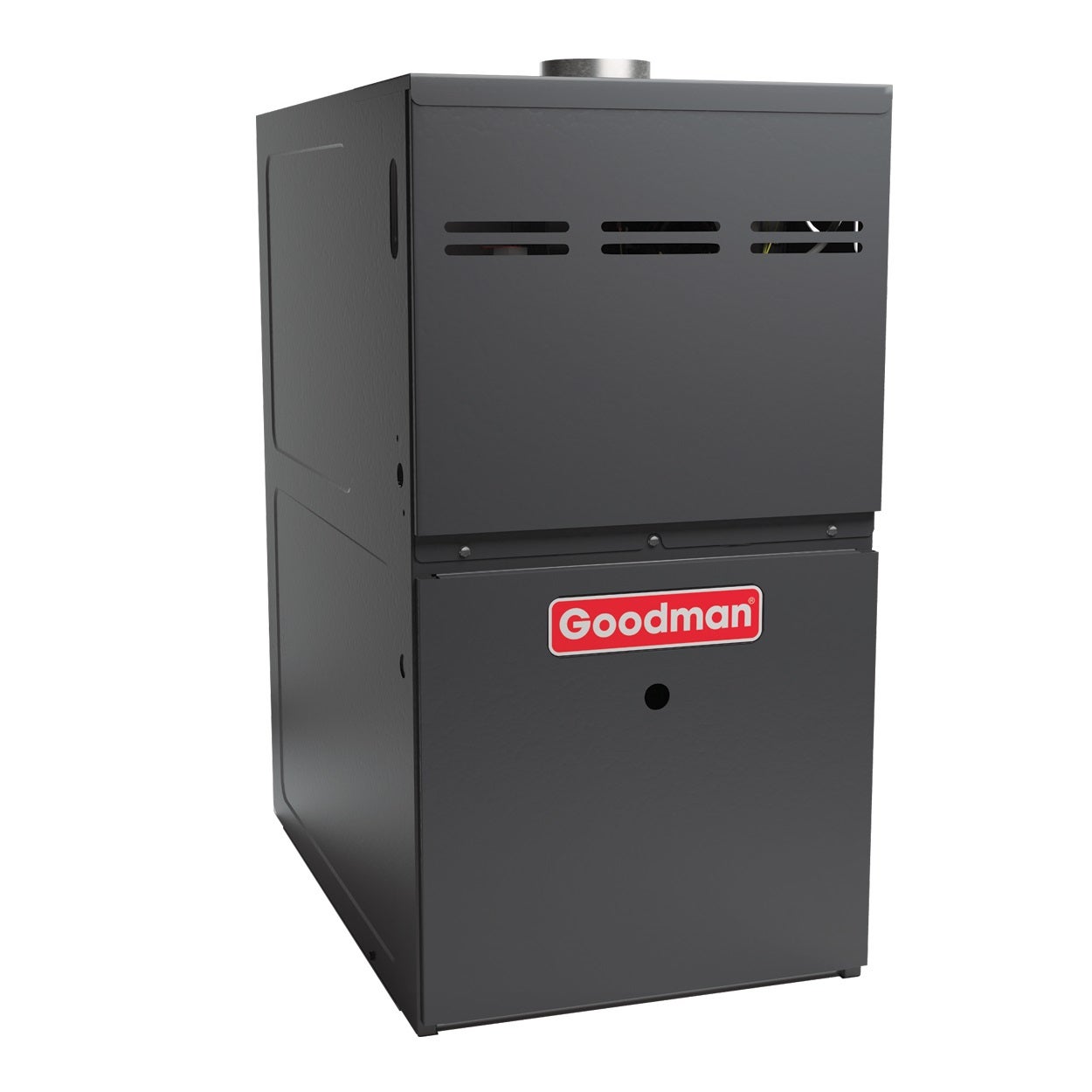

40,000 BTU 80% AFUE 9-Speed Single Stage Goodman Gas Furnace - Upflow/Horizontal

The GM9S800403AN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GM9S800403AN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GM9S800403AN.

Features
  • This furnace is ideal to heat a smaller house (depending on climate)
  • 40,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal (right or left) orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPNGM9S800403AN
Weight (in lbs) 90.000000
Exhaust Flue Requirement Metal
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 80%
Heating BTU 40,000
Blower Motor 9 Speed
Maximum CFM 1200
Configuration Upflow/Horizontal
Exhaust Pipe Metal
Electrical 115 V. 1 Phase 60 Hz
Phase Single Phase
Burner Stages Single
Fuel Type Propane, Natural Gas
Height 33 3/8"
Width 14"
Depth 28"
Warranty 10 Years with Online Registration
