capacity:
18000 BTU
category:
Furnaces
heating_capacity:
30000 BTU
manufacturer:
Goodman
mpn:
GSXH501810AMST30BU1400
subcategory:
AC Units,Furnaces & Heat Pumps
type:
AC Units
weight:
364
Product Description
Goodman - GSXH501810AMST30BU1400 At one of the higher efficiencies on the market, the Goodman GSZH503010 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZH503010 is considered a good all-around choice for many applications.
Features- Designed to cover a smaller house in average climates
- 2.5 Ton, 15.2 SEER2 heat pump condenser
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
Additional Information
MPNGSXH501810
Weight (in lbs) 144.000000
Brand/Manufacturer Goodman
Replaces GSX160181
Cooling BTU 18,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 72
Horsepower 0.125 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 20 Amps
Min. Breaker Size 11.9 Amps
Tonnage 1.5 Ton
Connection Sweat
Height 27"
Width 26"
Depth 26"
Warranty 10 Years Parts with Online Registration

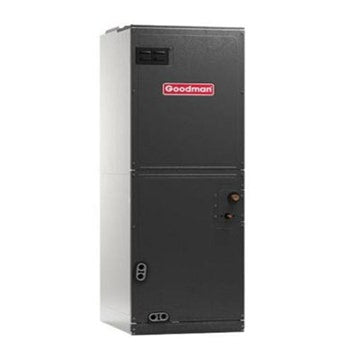

2.5 Ton Multi-Positional Goodman Air Handler
The Goodman AMST30BU1400 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
Features- 2.5 ton air handler
- Electric heat compatible
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
Additional Information
MPNAMST30BU1400
Weight (in lbs) 129.000000
Brand/Manufacturer Goodman
Replaces ASPT30B14ARUF30B14
Blower Motor Multi-Speed Direct Drive ECM Motor
Maximum CFM 1185
Horsepower 0.75 HP
Electric Backup Heat Capabilities (Optional) 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts
Refrigerant R410A
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/240v 1 Phase 60Hz
Max Breaker Size 15 Amps
Min. Breaker Size 5.6 Amps
Tonnage 2.5 Ton
Connection 3/4" FPT
Height 53 7/16"
Width 17 9/16"
Depth 21"
Warranty 10 Years Parts with Online Registration
