Goodman 2.5 Ton 14.5 SEER2 97% AFUE 80,000 BTU Goodman Gas Furnace and AC+ Heat System - Horizontal

Goodman 2.5 Ton 14.5 SEER2 97% AFUE 80,000 BTU Goodman Gas Furnace and AC+ Heat System - Horizontal

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi027-GSZH503010CHPTA3026C4GCVM970804CN

Regular price $6,290.00 USD
Regular price Sale price $6,290.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 30000 BTU
category: Furnaces
furnace_efficiency_afue: 97%
heating_capacity: 30000 BTU
manufacturer: Goodman
mpn: GSZH503010CHPTA3026C4GCVM970804CN
subcategory: AC Units,Furnaces & Heat Pumps
type: AC Units
weight: 443

Product Description

Goodman - GSZH503010CHPTA3026C4GCVM970804CN At one of the higher efficiencies on the market, the Goodman GSZH503010 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZH503010 is considered a good all-around choice for many applications.

Features
  • Designed to cover a smaller house in average climates
  • 2.5 Ton, 15.2 SEER2 heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

Additional Information

MPNGSZH503010
Weight (in lbs) 235.000000
Brand/Manufacturer Goodman
Replaces GSZ160301
Cooling BTU 30,000
Heating BTU 30,000
Blower Motor Single Speed Motor
Decibel Level (dBA) 69
Horsepower 0.167 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 30 Amps
Min. Breaker Size 18.6 Amps
Tonnage 2.5 Ton
Connection Sweat
Height 39 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

2.5 Ton 21" Height Goodman Horizontal Evaporator Coil - Cased

The Goodman CHPTA3026C4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA3026C4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 2.5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

Additional Information

MPNCHPTA3026C4
Weight (in lbs) 64.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 2.5 Ton
Style A-Coil
Certification ETL Listed
Height 21"
Width 26"
Depth 21"
Warranty 10 Years Parts with Online Registration

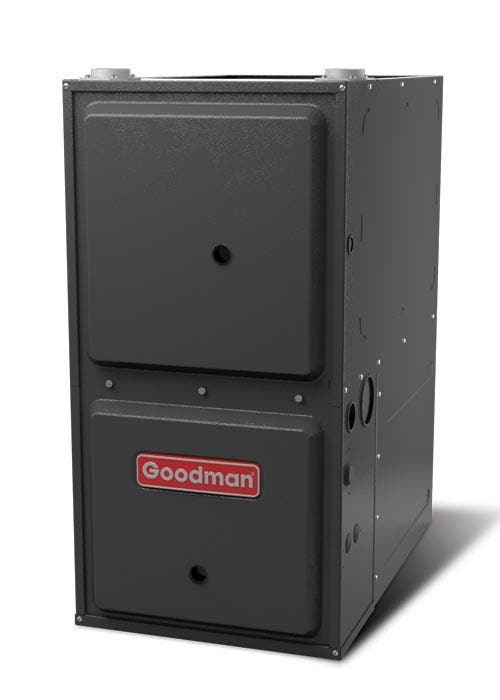

80,000 BTU 97% AFUE Downflow Variable Speed Goodman Gas Furnace 1600 CFM

With a variable speed blower motor and modulating gas valves, the GCVM970804CN is from the best furnace series that Goodman has to offer. At 97% efficient, this furnace has the highest possible efficiency available in today™s technology and offered by Goodman. If you want the best of the best for your home, the GCVM970804CN is the furnace for you.

Features
  • Ideal to heat a medium-sized house (in an ideal climate)
  • 80,000 BTU 97% AFUE modulating variable speed natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be installed in the downflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPNGCVM970804CN
Weight (in lbs) 144.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 97%
Heating BTU 80,000
Blower Motor Variable Speed - ECM
Maximum CFM 1600
Configuration Downflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Energy Star Yes
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Modulating
Fuel Type Propane, Natural Gas
Height 34.5"
Width 21"
Depth 28.75"
Warranty 10 Years with Online Registration
