Goodman

Goodman 2 Ton 14.5 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and AC+ Heat System - Downflow

Goodman 2 Ton 14.5 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and AC+ Heat System - Downflow

Dropship

SKU SKU:kpi027-GSZH502410CAPTA2422B4GCVC800803BX

Regular price $4,816.00 USD
Regular price Sale price $4,816.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 24000 BTU
category: Furnaces
furnace_efficiency_afue: 80%
heating_capacity: 24000 BTU
manufacturer: Goodman
mpn: GSZH502410CAPTA2422B4GCVC800803BX
subcategory: AC Units,Furnaces & Heat Pumps
type: AC Units
weight: 370

Goodman - GSZH502410CAPTA2422B4GCVC800803BX At one of the higher efficiencies on the market, the Goodman GSZH502410 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZH502410 is considered a good all-around choice for many applications.

Features
  • Designed to cover a smaller house in average climates
  • 2 Ton, 15.2 SEER2 heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

Additional Information

MPNGSZH502410
Weight (in lbs) 213.000000
Brand/Manufacturer Goodman
Replaces GSZ160241
Cooling BTU 24,000
Heating BTU 24,000
Blower Motor Single Speed Motor
Decibel Level (dBA) 72
Horsepower 0.167 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 25 Amps
Min. Breaker Size 15.3 Amps
Tonnage 2 Ton
Connection Sweat
Height 35 3/4"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

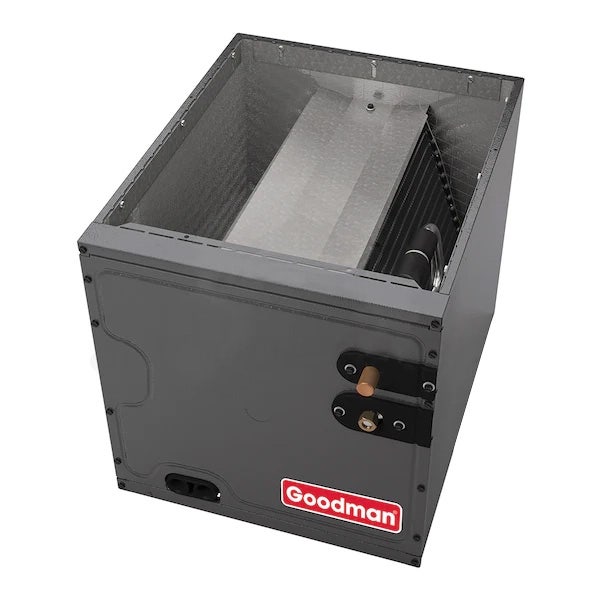

2 Ton 17.5" Width Goodman Upflow/Downflow Evaporator Coil - Cased - TXV

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPT is a cased A-Coil for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features
  • All-Aluminum Coil: The design of Goodman's evaporator coils maximizes surface area and optimizes heat transfer for efficient comfort. Using a reliable all-aluminum design using sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Secure Cabinet: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • Refrigerant Compatibility: The CAPTA is only compatible with R-410A refrigerant.
  • Extended Warranty: 10-year limited warranty

Additional Information

MPNCAPTA2422B4
Weight (in lbs) 48.000000
Brand/Manufacturer Goodman
Cooling BTU 24,000
Configuration Upflow / Downflow
Refrigerant R410A
Liquid Line 3/8"
Suction Line 3/4"
Tonnage 2 Ton
BTU/Tonnage 24,000 BTU/2 Ton
Certification ETL Listed, AHRI Certified
Height 22"
Width 17.5"
Depth 21"
Warranty 10-year limited

80,000 BTU 80% Two-Stage Variable-Speed ECM Gas Furnace Low NOx - Downflow/Horizontal

The GCVC800803BX gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, and a lower emissions output to match the low NOx compliance regulations in California, we are proud to offer you the Goodman GCVC800803BX gas furnace.

Features
  • This furnace is ideal to heat a medium-size house (in average climate conditions)
  • 80,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Low NOx Compliant
  • Requires metal flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPNGCVC800803BX
Weight (in lbs) 109.000000
Exhaust Flue Requirement Metal
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 80%
Heating BTU 80,000
Blower Motor Variable Speed
Maximum CFM 1200
Configuration Downflow/Horizontal
Electrical 115 VAC, 60 Hz
Low NOx Low NOx
Burner Stages Two
Fuel Type Propane, Natural Gas
Certification AHRI Certified; ETL Listed
Height 33 3/8"
Width 17.5"
Depth 28"
Warranty Lifetime Heat Exchanger, 10 Years Parts, and 10 Years Unit Replacement Warranty with Online Registration
