Goodman

Goodman 3.5 Ton 14.5 SEER2 96% AFUE 100,000 BTU Goodman Gas Furnace and AC+ Heat System - Upflow

Goodman 3.5 Ton 14.5 SEER2 96% AFUE 100,000 BTU Goodman Gas Furnace and AC+ Heat System - Upflow

Dropship

SKU SKU:kpi027-GSZH504210CAPTA4230C4GM9C961004CN

Regular price $6,028.00 USD
Regular price Sale price $6,028.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 42000 BTU
category: Furnaces
furnace_efficiency_afue: 96%
heating_capacity: 42000 BTU
manufacturer: Goodman
mpn: GSZH504210CAPTA4230C4GM9C961004CN
subcategory: AC Units,Furnaces & Heat Pumps
type: AC Units
weight: 487

Goodman - GSZH504210CAPTA4230C4GM9C961004CN At one of the higher efficiencies on the market, the Goodman GSZH504210 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZH504210 is considered a good all-around choice for many applications.

Features
  • Designed to cover a smaller house in average climates
  • 3.5 Ton, 15.2 SEER2 heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

Additional Information

MPNGSZH504210
Weight (in lbs) 284.000000
Brand/Manufacturer Goodman
Replaces GSZ160421
Cooling BTU 42,000
Heating BTU 42,000
Blower Motor Single Speed Motor
Decibel Level (dBA) 75
Horsepower 0.25 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 1 1/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 40 Amps
Min. Breaker Size 23.4 Amps
Tonnage 3.5 Ton
Connection Sweat
Height 35 3/4"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

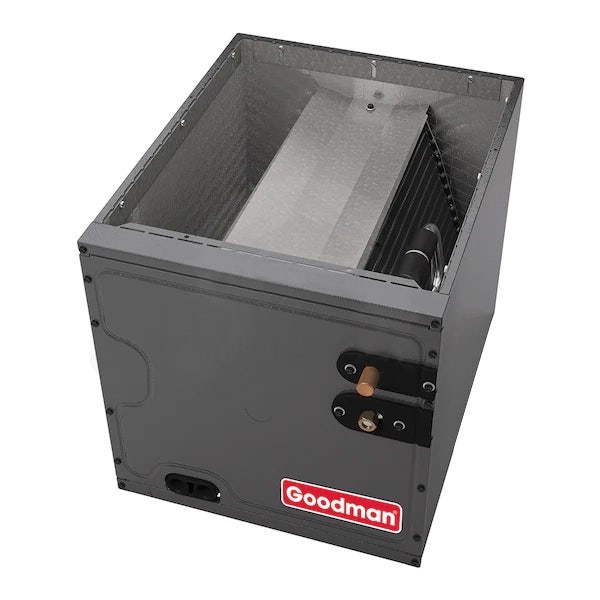

3.5 Ton 21" Width Goodman Upflow/Downflow Evaporator Coil - Cased - TXV

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPT is a cased A-Coil for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features
  • All-Aluminum Coil: The design of Goodman's evaporator coils maximizes surface area and optimizes heat transfer for efficient comfort. Using a reliable all-aluminum design using sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Secure Cabinet: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • Refrigerant Compatibility: The CAPTA is only compatible with R-410A refrigerant.
  • Extended Warranty: 10-year limited warranty

Additional Information

MPNCAPTA4230C4
Weight (in lbs) 63.000000
Brand/Manufacturer Goodman
Cooling BTU 42,000
Configuration Upflow / Downflow
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 3.5 Ton
BTU/Tonnage 42,000 BTU/3.5 Ton
Certification ETL Listed, AHRI Certified
Height 30"
Width 21"
Depth 21"
Warranty 10-year limited

100,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Upflow/Horizontal

As a high-efficiency system, the GM9C961004CN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GMEC961004CN is a good way to go if you want to lower your gas bill.

Features
  • This furnace is ideal to heat a larger house (depending on climate)
  • 100,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPNGM9C961004CN
Weight (in lbs) 140.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 96%
Heating BTU 100,000
Blower Motor 9 Speed - ECM
Maximum CFM 1600
Configuration Upflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Energy Star Yes
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Two
Fuel Type Propane, Natural Gas
Height 34.5"
Width 21"
Depth 28.75"
Warranty 10 Years with Online Registration
