Goodman

Goodman 4 Ton 14.5 SEER2 96% AFUE 120,000 BTU Goodman Gas Furnace and AC+ Heat System - Upflow

Goodman 4 Ton 14.5 SEER2 96% AFUE 120,000 BTU Goodman Gas Furnace and AC+ Heat System - Upflow

Dropship

SKU SKU:kpi027-GSZH504810CAPT4961D4GM9C961205DN

Regular price $6,562.00 USD
Regular price Sale price $6,562.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 48000 BTU
furnace_efficiency_afue: 96%
heating_capacity: 48000 BTU
manufacturer: Goodman
mpn: GSZH504810CAPT4961D4GM9C961205DN
weight: 522

Goodman - GSZH504810CAPT4961D4GM9C961205DN At one of the higher efficiencies on the market, the Goodman GSZH504810 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZH504810 is considered a good all-around choice for many applications.

Features
  • Designed to cover a smaller house in average climates
  • 4 Ton, 15.2 SEER2 heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

Additional Information

MPNGSZH504810
Weight (in lbs) 292.000000
Brand/Manufacturer Goodman
Replaces GSZ160481
Cooling BTU 48,000
Heating BTU 48,000
Blower Motor Single Speed Motor
Decibel Level (dBA) 74
Horsepower 0.25 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 1 1/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 45 Amps
Min. Breaker Size 26.2 Amps
Tonnage 4 Ton
Connection Sweat
Height 36 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

4 to 5 Ton 24.5" Width Goodman Cased Evaporator Coil with TXV

The Goodman CAPT4961D4 evaporator coil is ready for any vertical installation that you need it for. With a built-in TXV kit for efficiency, the CAPT4961D4 lives up to Goodman™s expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 4 to 5 ton vertical evaporator coil
  • Installable in the upflow or downflow configuration
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Factory-installed TXV

Additional Information

MPNCAPT4961D4
Weight (in lbs) 76.000000
Brand/Manufacturer Goodman
Configuration Upflow / Downflow
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 4 Ton to 5 Ton
Style A-Coil
Height 30"
Width 24.5"
Depth 21"
Warranty 10 Years with Online Registration

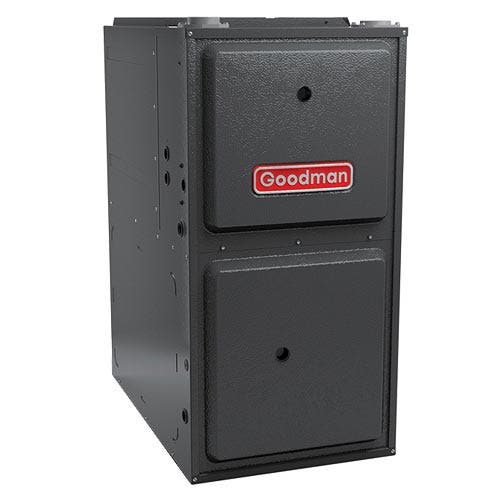

120,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Upflow/Horizontal

As a high-efficiency system, the GM9C961205DN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GM9C961205DN is a good way to go if you want to lower your gas bill.

Features
  • This furnace is ideal to heat a larger house (depending on climate)
  • 120,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPNGM9C961205DN
Weight (in lbs) 154.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 96%
Heating BTU 120,000
Blower Motor 9 Speed - ECM
Maximum CFM 2000
Configuration Upflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Energy Star Yes
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Two
Fuel Type Propane, Natural Gas
Height 34.5"
Width 24.5"
Depth 28.75"
Warranty 10 Years with Online Registration
